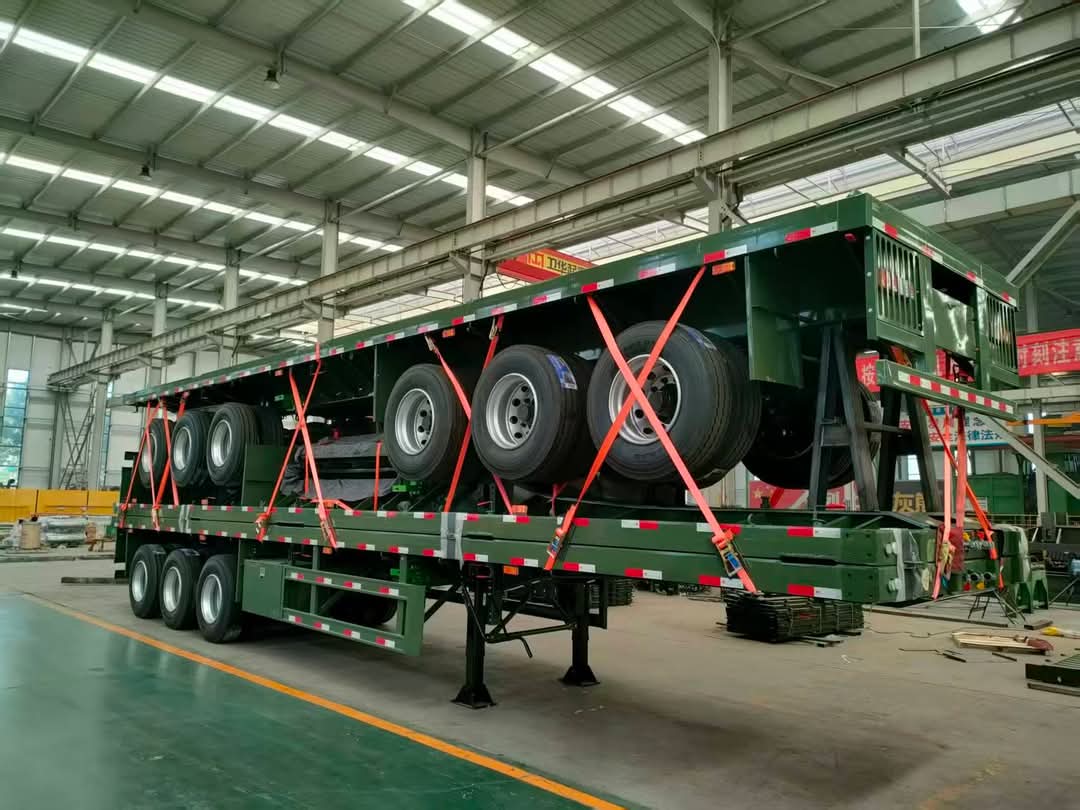

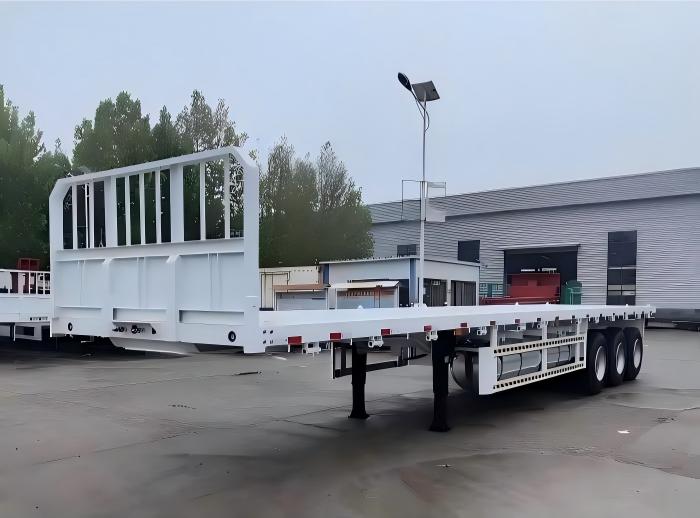

3 axle flatbed trailer for sale to Vietnam
Overview:
A Vietnamese logistics company was looking for a durable and cost effective 3 axle trailer for transporting building materials, container, steel products, machinery, and other general cargo.
After thoroughly understanding the client’s cargo needs, road conditions, and tractor configuration, we recommended a 3 axle flatbed trailer equipped with a reinforced chassis, mechanical suspension system, and practical flatbed platform.
The client chose this flatbed semi trailer due to its excellent load-bearing capacity, high structural strength, ease of maintenance, and flexible cargo application capabilities. The trailer manufacture in China and, after completing production and quality inspection, is ready for export to Vietnam.
Why Choose a 3 Axle Flatbed Trailer?
The 3 axle flatbed trailer is one of the most widely used configurations for general cargo transport. Its three-axle design strikes an optimal balance between load-bearing capacity, maneuverability, operating costs, and maintenance requirements.
Reinforced Structure for Heavy Cargo
To support frequent heavy-duty transportation, the trailer features a reinforced chassis manufactured from high-strength steel.
Practical Mechanical Suspension System
The customer selected a mechanical suspension system because of its simple structure, durability, and ease of maintenance.
Easy Loading and Unloading
One of the biggest advantages of a flatbed trailer for sale is its open cargo platform. Without fixed side walls or a roof, cargo can be loaded using cranes, forklifts, or other handling equipment.
3 Axle Flatbed Trailer – Technical Specifications
| Item | Specification |
| Trailer Type | 3 Axle Flatbed Semi Trailer |
| Application | General Cargo / Heavy Cargo Transportation |
| Overall Length | 12,500 mm |
| Overall Width | 2,500–3,000 mm |
| Overall Height | Approx. 1,550 mm |
| Platform Length | 12,500 mm |
| Platform Width | 2,500–3,000 mm |
| Loading Capacity | 40–60 Tons |
| Axle Quantity | 3 Axles |
| Axle Brand | FUWA / BPW / Customized |
| Suspension | Mechanical Leaf Spring Suspension |
| Leaf Spring | 90 × 13 × 10 Layers |
| Tire Quantity | 12 Units |
| Tire Size | 12R22.5 / 315/80R22.5 |
| Rim Size | 9.00 × 22.5 |
| Kingpin | 2″ or 3.5″ |
| Main Beam | High-Strength Structural Steel |
| Cross Beam | Reinforced Steel |
| Side Beam | High-Strength Steel |
| Platform Structure | Flat Steel Platform |
| Brake System | Dual-Line Air Brake System |
| Brake Chamber | T30/30 |
| Landing Gear | JOST / FUWA |
| Electrical System | 24V |
| Lighting System | LED Lights |
| ABS | Optional |
| Container Twist Locks | Optional |
| Spare Tire Carrier | Optional |
| Surface Treatment | Sandblasting + Primer + Final Paint |
| Trailer Color | Customer’s Choice |
| Destination | Vietnam |
| Customization | Available |
Reliable Flatbed Trailer Solution for Vietnam
By combining a reinforced chassis, three-axle configuration, mechanical suspension, and flexible loading platform, this Boca flatbed semi trailer provides a practical solution for the customer’s diverse transportation requirements.
The successful completion of this project also demonstrates Boca’s ability to customize flatbed trailers for sale according to different cargo types, road conditions, and tractor configurations.
For logistics companies in Vietnam and other Southeast Asian markets looking for a 3 axle flatbed trailer, Boca can provide customized trailer solutions designed around specific transportation and business requirements.
