Dump Semi Trailer Buying Guide for Mining, Quarry and Construction Projects
This guide explains how to choose a dump trailer for mining, quarry and construction projects by comparing cargo type, unloading method, axle configuration, hydraulic system, body strength, tractor matching and export inspection needs.
Choosing a dump semi trailer for a mining, quarry, or construction project requires more than comparing body size and price. Cargo density, unloading direction, road condition, axle limits, hydraulic performance, tractor compatibility, and inspection requirements all influence whether a trailer will work efficiently after delivery. This guide explains the main specifications to compare before requesting a quotation.
A properly configured dump semi trailer can support repeated transport of sand, gravel, coal, ore, crushed stone, aggregate, soil, demolition debris, and other loose bulk materials. However, select the trailer according to the material and route rather than body volume alone.
Dense cargo such as ore or wet aggregate may reach the permitted operating weight before the body is full. Lighter cargo such as coal may require more body volume to achieve an efficient payload. In addition, sharp stone can cause impact and abrasion, while wet clay or sticky material may create difficult discharge conditions. As a result, these differences affect the floor plate, side walls, frame reinforcement, hydraulic system, tailgate, suspension, tires, and braking components.
For this reason, a reliable buying process starts with the actual project. The purchaser should define the cargo, route, loading equipment, unloading site, required daily cycles, tractor configuration, destination regulations, and maintenance conditions before choosing the trailer model.
What Is a Dump Semi Trailer?
A dump semi trailer is a tipping trailer designed to transport loose bulk cargo and discharge it through hydraulic lifting. It does not have its own engine or cab. The trailer connects to a tractor truck through the fifth wheel, while the tractor provides pulling power, air-brake control, electrical connections, and, depending on the configuration, hydraulic operating support.
This structure is different from a dump truck. A dump truck is a complete vehicle with its own cab, engine, chassis, axles, and dump body. A semi-trailer depends on a compatible tractor, but it can provide greater flexibility for fleets that already operate tractor units or need to exchange trailers between different transport tasks.
Operators commonly use dump semi trailers for construction material transport, quarry aggregate, mining material, road base, coal, ore, soil, and demolition waste. They work most effectively when the buyer clearly defines the loading method, transport distance, unloading area, and daily cycle before confirming the specification.
Typical Applications
- Mining projects: ore, coal, overburden, tailings, and material movement between loading areas, processing points, and stockpiles.
- Quarry operations: crushed stone, gravel, aggregate, and hard material loaded by wheel loaders or excavators.
- Construction projects: sand, soil, road base, demolition debris, and material supply for roads, bridges, buildings, and infrastructure.
- Port and industrial yards: repeated movement of bulk material where loading speed, unloading control, and predictable maintenance are important.
Start with Cargo Density, Not Only Body Volume
One of the most common specification mistakes is selecting the largest available body without calculating how the material density affects the actual payload. Manufacturers normally state body volume in cubic metres, while operators measure payload in tonnes. Review these two figures together.
For example, a high-volume body may be useful for relatively light cargo. However, dense ore, wet sand, and heavy aggregate may reach the permitted gross weight when the body is only partly filled. In this situation, increasing body volume does not increase the legal payload. It may instead add unnecessary trailer weight and raise the centre of gravity.
Moreover, material behaviour also matters. Dry sand normally flows more easily than wet clay. Large rocks can strike the floor with concentrated impact. Fine material may enter hinges and locking points. Sticky cargo may remain attached to the floor during tipping, creating an uneven load that affects stability.
Before requesting a body recommendation, provide the approximate cargo density, moisture level, particle size, loading equipment, and expected payload. These details help determine a suitable body volume, floor thickness, side-wall thickness, reinforcement pattern, and tailgate structure.
| Cargo Condition | Main Specification Concern | Information to Provide |
| Light bulk material | Body volume and efficient use of available capacity | Density, expected payload, route limits, and loading height |
| Dense ore or wet aggregate | Axle load, frame strength, floor wear, and legal gross weight | Material density, axle regulations, tractor capacity, and road condition |
| Sharp stone or demolition debris | Impact resistance, abrasion zones, tailgate, and body reinforcement | Maximum particle size, loading equipment, and drop height |
| Wet or sticky material | Clean discharge, body angle, floor condition, and stability | Moisture level, unloading site, cleaning method, and cycle frequency |
End or Rear Dump vs Side Dump
The two main unloading directions are end or rear dumping and side dumping. In normal trailer terminology, an end dump and a rear dump describe the same basic operating principle: the front of the body rises and the cargo exits through the rear tailgate. Product names may use either term, so buyers should always check quotation drawings and discharge direction.
End or Rear Dump Trailer
An end dump trailer raises the front of the body and unloads material behind the trailer. This layout is widely used for sand, gravel, coal, ore, aggregate, and construction waste because it has a straightforward structure and can form a pile directly behind the vehicle.
The unloading site must provide sufficient rear clearance and overhead space. Firm, reasonably level ground is important because the body rises to a significant height. The tractor and trailer should remain aligned during tipping, and the operator should avoid unloading on a side slope or soft shoulder.

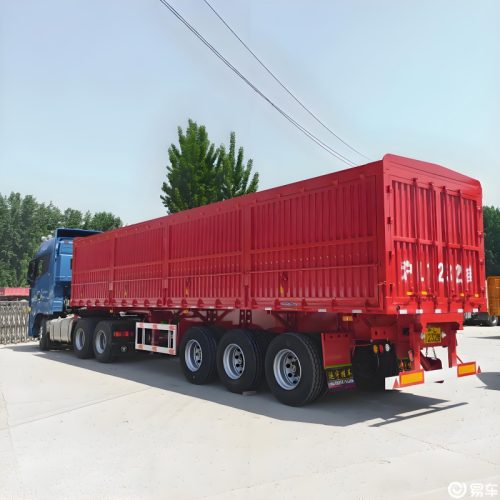

Side Dump Trailer
By comparison, a side dump trailer discharges material to one side. It can be useful for road construction, controlled windrow discharge, quarry lanes, embankment work, and locations where rear unloading is inconvenient. The body generally does not need to rise as high as a conventional end dump body, but site conditions still require careful review.
Before selecting a side dump configuration, confirm the permitted discharge side, road width, traffic direction, ground level, nearby workers, and available side clearance. A side dump is not automatically suitable for every narrow site; the discharge direction must match the actual work plan.
| Configuration | Suitable Applications | Site Conditions to Check |
| End or rear dump | General bulk transport, mining, quarrying, construction, coal, sand, gravel, and aggregate | Rear clearance, overhead clearance, level ground, body lifting height, and tailgate operation |
| Side dump | Roadwork, windrow discharge, quarry lanes, embankments, and controlled side unloading | Discharge side, road width, ground slope, traffic direction, and worker exclusion area |
For unloading-method selection, compare end dump vs side dump semi trailer configurations.
Project Requirements for Mining, Quarry, and Construction Work
Mining Projects
Meanwhile, mining routes can include steep gradients, uneven surfaces, heavy material, long operating hours, and repeated loading cycles. The specification should focus on frame strength, axle capacity, braking performance, tire suitability, hydraulic protection, and access to service points. If the trailer will travel off-road, turning space and ground clearance also require attention.
Quarry Operations
A wheel loader or excavator may drop abrasive quarry material from a considerable height. Floor impact zones, side-wall reinforcement, tailgate strength, hinge protection, and weld quality are therefore important. Tire damage and dust exposure may also influence the maintenance plan.
Construction and Infrastructure
Construction projects may require a more flexible trailer because the route, cargo, and unloading location can change between jobs. Maneuverability may be more important than maximum body volume, especially on urban sites or temporary access roads. The project should also consider height restrictions, narrow entrances, soft ground, nearby buildings, and the availability of a suitable tractor.
Key Specifications That Determine Trailer Performance
Axle Quantity and Legal Loading
Two-, three-, and four-axle configurations serve different operating needs. A two-axle trailer may provide easier maneuverability and lower maintenance demand for lighter construction work. Three-axle layouts are common for general heavy bulk transport. Four-axle configurations may provide additional load distribution for demanding routes, subject to local regulations and tractor capacity.
More axles do not automatically create a better trailer. Additional axles increase tire quantity, brake components, suspension parts, turning resistance, and maintenance points. Axle selection should balance permitted axle load, expected payload, route surface, turning radius, tire cost, and local enforcement.
Main Frame and Crossmembers
The main beams support the load during transport and experience additional stress during tipping. Crossmembers distribute body loads into the chassis, while the kingpin area transfers force between the trailer and tractor. A heavy-duty specification should consider beam material, flange and web dimensions, crossmember spacing, welding quality, reinforcement around the cylinder and hinge areas, and the expected loading impact.
An extremely heavy frame is not always the best solution because unnecessary tare weight reduces usable payload. A balanced design provides sufficient strength in high-stress areas without adding material that does not improve the real operating result.
Dump Body and Steel Thickness
Loading equipment and cargo place direct impact on the floor. Meanwhile, the side walls control material containment, while the rear gate must open reliably under pressure. Therefore, choose steel thickness according to material type, loading height, particle size, abrasion, and expected service life.
Request information about the floor plate, side-wall plate, reinforcement ribs, upper rail, rear gate, hinges, locking mechanism, and wear areas. For hard rock or demolition debris, reinforcement should focus on impact zones rather than simply increasing every plate dimension.
Hydraulic Cylinder and Lifting Structure
The hydraulic system controls lifting force, tipping speed, body movement, and unloading reliability. Important points include cylinder type, rated capacity, installation angle, mounting points, hose routing, oil-pipe protection, hinge alignment, operating pressure, and access for inspection.
The hydraulic specification should match the loaded body rather than the empty body. Buyers should request a lifting test and review whether the body rises smoothly, remains aligned, holds its position correctly, and lowers without unusual movement or leakage.
Suspension, Tires, and Brakes
Many operators choose mechanical suspension for rough industrial work because of its straightforward structure and serviceability. By contrast, air suspension may suit particular road applications where ride characteristics or axle management are important, but buyers should consider local maintenance capability.
Tires should match load, road surface, operating speed, climate, and replacement availability. Quarry and mine roads can damage sidewalls, while long highway sections create heat and tread wear. Using a tire model that is difficult to source in the destination market may increase future downtime.
Braking components, air lines, lighting, reflectors, and vehicle dimensions should follow the destination market’s requirements. International vehicle-regulation subjects are available through UNECE Vehicle Regulations, but the importer should confirm the specific registration, axle, brake, lighting, and dimension rules that apply locally.
Tractor Matching and Fifth-Wheel Compatibility
The tractor must guide the dump semi trailer configuration. Therefore, review fifth-wheel height, kingpin position, tractor wheelbase, drive type, tire size, hydraulic connection, air lines, electrical socket, turning clearance, and available pulling power together.
An incorrect fifth-wheel height can change trailer attitude and load distribution. Limited turning clearance may cause interference between the tractor and trailer. Insufficient tractor capacity can reduce route performance, especially on steep mine or quarry roads.
For an existing fleet, provide the tractor brand, model, drive configuration, fifth-wheel height, tire specification, hydraulic equipment, and intended combination weight. Photographs and measurements are more useful than relying only on the tractor model name.
Unloading Stability and Jobsite Safety
In practice, trailer design is only one part of safe unloading. The ground condition, cargo distribution, tractor alignment, wind, overhead clearance, side slope, and operator procedure can all affect stability. A trailer that operates correctly on a prepared unloading pad may not perform the same way on soft or uneven ground.
- Unload on firm, stable, and appropriately level ground.
- Keep the tractor and trailer aligned during end or rear tipping.
- Confirm overhead clearance before raising the body.
- Confirm even cargo distribution before unloading.
- Do not continue lifting if material remains stuck on one side.
- Keep workers, vehicles, and equipment outside the discharge area.
- Inspect the tailgate, locks, hinges, cylinder, hoses, and mounting points regularly.
BOCA Vehicle Dump Trailer Options

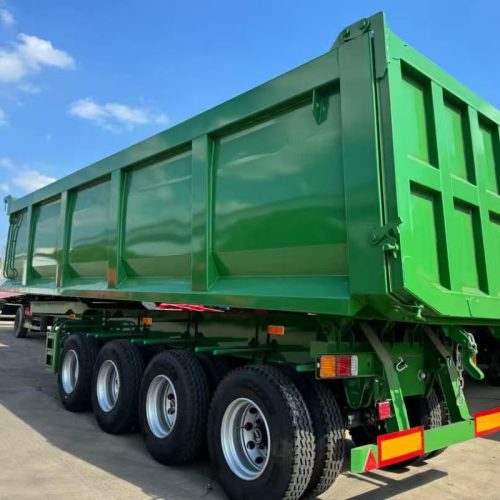

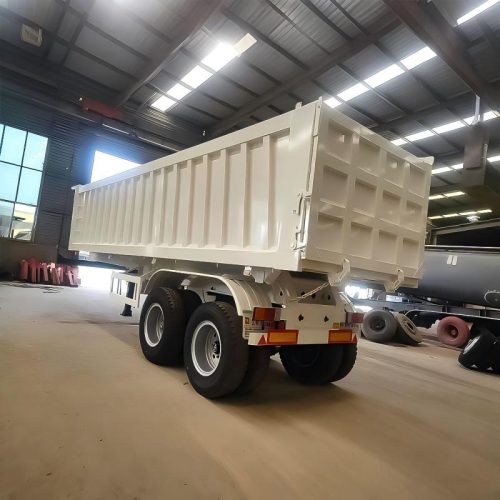

For example, the following BOCA Vehicle products show how axle quantity and unloading style fit different transport conditions. Buyers should still confirm the final configuration according to cargo density, route limits, tractor details, and destination requirements.
What to Include in a Quotation Request
Requests that mention only “three-axle dump trailer” or “heavy-duty mining trailer” may not provide enough information for a suitable recommendation. Therefore, a detailed inquiry allows the manufacturer to review the body, axles, hydraulic system, suspension, tires, tractor matching, and shipping plan as one complete configuration.
Quotation Checklist
- Cargo type, approximate density, moisture level, and maximum particle size
- Target payload and expected dump body volume
- End or rear dumping, or side dumping
- Preferred axle quantity and local axle-load restrictions
- Mine road, quarry road, highway, construction site, or port-yard conditions
- Maximum road gradient, turning space, and unloading-ground condition
- Loading equipment and approximate loading height
- Existing tractor model, fifth-wheel height, and hydraulic arrangement
- Destination country, registration requirements, and inspection scope
- Order quantity, required colour, logo, spare parts, and shipment schedule
Pre-Shipment Inspection Points
Before shipment, inspection should confirm that the delivered trailer matches the agreed specification. General exterior photos are useful, but detailed images and operating videos provide better evidence for remote export coordination.
| Inspection Area | What to Confirm | Recommended Evidence |
| Body and tailgate | Dimensions, floor, side walls, reinforcement, hinges, locks, and opening direction | Dimension photos, body interior images, and tailgate operating video |
| Frame and coupling | Main beams, crossmembers, welds, kingpin area, landing gear, and tractor clearance | Underbody photos, weld close-ups, and kingpin identification |
| Running system | Axles, suspension, tires, rims, brake chambers, air lines, lights, and reflectors | Axle labels, tire markings, suspension photos, and lighting test |
| Hydraulic system | Cylinder, mounting points, hoses, oil lines, lifting alignment, holding, and lowering action | Complete lifting and lowering video plus close-up photos |
In addition, the buyer should confirm paint colour, logo, identification plates, spare parts, toolboxes, mudguards, documents, and shipment preparation. If the buyer requires a third-party inspection, both sides should agree on the inspection scope before production ends.
Maintenance and Long-Term Operating Cost
Over time, purchase price is only one part of trailer cost. Tire replacement, brake servicing, hydraulic seals, hose protection, hinge lubrication, tailgate adjustment, suspension wear, paint repair, and structural inspection all affect the long-term operating result.
A practical trailer should use components that technicians can inspect and service without unnecessary disassembly. In addition, confirm local availability for replacement tire sizes, brake parts, bearings, seals, and hydraulic components, or include them in the spare-parts plan.
Daily checks should focus on tires, air lines, lights, tailgate locks, hinges, hydraulic hoses, visible leaks, and body damage. Periodic inspection should cover frame welds, cylinder mounts, suspension parts, wheel fasteners, brake condition, landing gear, and kingpin wear. Early repair of a small crack, loose mounting point, or damaged hose can help prevent more expensive downtime.
Related Reading
These BOCA Vehicle guides provide additional information about unloading direction, export trailer selection, and basic dump semi-trailer structure.
Safety Comparison
Side Dump Trailer vs Rear Dump: Which Is Safer for Your Jobsite?
Compare unloading height, discharge direction, ground condition, site space, and operating risks.
Read GuideExport Market Guide
Why Chinese Dump Semi Trailers Are Popular
Review common applications, export configuration options, and purchasing considerations.
Read GuideProduct Knowledge
What Is a Dump Semi Trailer?
Learn the basic structure, hydraulic lifting principle, applications, and trailer terminology.
Read GuideFrequently Asked Questions
Selection and Specification Questions
Is an end dump trailer different from a rear dump trailer?
In most semi-trailer applications, the terms describe the same basic design. The front of the body rises and the cargo exits through the rear tailgate. Different manufacturers and markets may use either name, so buyers should confirm the drawing, tailgate, and unloading direction.
How many axles should a mining or quarry trailer have?
The correct axle quantity depends on payload, material density, local axle limits, road condition, tractor capacity, turning space, and maintenance cost. Two axles may suit lighter work, while three or four axles may support heavier routes. Do not select more axles without checking the complete operating combination.
How should dump body volume be selected?
Calculate body volume from the cargo density and target payload. Dense material may reach the legal weight before filling a large body, while lighter cargo may require more volume. Also include trailer tare weight and axle-load regulations in the calculation.
What information is needed to recommend steel thickness?
Provide the cargo type, density, particle size, moisture, loading equipment, drop height, expected daily cycles, and required service life. Sharp rock and demolition debris may need stronger wear zones than sand or coal. Evaluate the floor, side walls, tailgate, and reinforcement separately.
Operation and Inspection Questions
Can one dump trailer carry several different materials?
It may carry different compatible bulk materials, but base the configuration on the most demanding expected cargo. A trailer designed mainly for coal may not have the same floor and reinforcement requirements as one regularly loaded with sharp quarry stone.
What should be checked during a hydraulic lifting test?
Check lifting speed, body alignment, cylinder movement, mounting points, hose routing, oil leakage, tailgate operation, holding stability, and controlled lowering. Request a complete video rather than only photographs of the raised body.
Final Buying Advice
The right trailer is not simply the model with the largest body, the greatest number of axles, or the thickest steel. A successful configuration balances cargo density, payload, body volume, frame strength, unloading style, hydraulic capacity, axle regulations, tractor compatibility, route conditions, maintenance access, and total operating cost.
For mining and quarry work, focus on impact resistance, frame support, running-system durability, and service access. Construction projects also require attention to maneuverability, changing routes, site restrictions, and compatibility with available tractors. Finally, every application should confirm the unloading surface and operating procedure before the trailer enters service.
A complete inquiry should include the cargo, density, payload, unloading direction, axle requirement, road condition, tractor details, destination country, order quantity, and inspection scope. This gives BOCA Vehicle enough information to discuss a project-based configuration instead of offering only a general model.
