What Is a Dump Semi Trailer? Comprehensive Guidance
Overview
Dump semi trailer are heavy-duty transport vehicles specifically designed for transporting and unloading bulk materials such as sand, gravel, coal, ore, and construction waste. Unlike traditional truck ,dump semi-trailer are towed by a tractor unit and utilize a hydraulic lifting system to tilt for automated unloading.
Dump semi trailer are widely used in construction, mining, infrastructure development, and large-scale transportation due to their high load capacity, efficiency, and durability.
This article provides a detailed guide to disassembling dump truck semi trailer—including their structure, working principles, types, specifications, applications, advantages, and purchasing advice.
Working Principle of Tipper semi trailer
Dump semi trailer use a hydraulic lifting system to raise the cargo box, allowing bulk materials to be quickly discharged from the rear door by gravity.
How does a dump semi-trailer work?
The unloading process typically follows these steps:
Loading Cargo: Bulk materials such as sand, gravel, ore, or construction waste are loaded into the dump cargo box.
Transporting Cargo: A tractor truck pulls the dump semi-trailer to the construction site, mine, quarry, or other destination.
Activating the Hydraulic System: After the truck has come to a suitable stop, the operator activates the hydraulic control system. Hydraulic oil is supplied to the lifting cylinder, gradually raising the front of the cargo box.
Unloading by Gravity: When the cargo box reaches the desired angle, the material slides backward and is discharged through the rear door.
Lowering the Cargo Box: After unloading, the hydraulic cylinder retracts, slowly restoring the cargo box to a horizontal position.
Main Hydraulic Components:
The hydraulic system typically includes:
Hydraulic Oil Tank – Stores and supplies hydraulic oil.
Hydraulic pump – generates hydraulic pressure for lifting. Control valve – controls the direction and speed of hydraulic oil flow.
Telescopic hydraulic cylinder – provides lifting force.
High-pressure hose – delivers hydraulic oil between components.
Safety valve – helps control pressure and improves operational safety.
A well-designed hydraulic system ensures smooth lifting, controlled unloading, and reliable operation during frequent heavy-duty operations.
Key Components of dump truck semi trailer
Heavy duty dump semi trailer consist of several key components that work together to provide reliable loading, unloading, transport, and dumping performance.
Cargo Box/Dump Truck Body
Dump body typically construct from high-strength steels such as Q345, Q550, or T700. For heavy-duty applications, wear-resistant steel plates such as NM450 or NM500 can also be used.
Common body designs include:
Rectangular box
Semi-circular box
U-shaped box
The U-shaped design facilitates smoother material discharge and reduces post-discharge residue.
Hydraulic Lifting System
The hydraulic system provides power for the tipping operation and is one of the most important components of the dump truck semi trailer.
Axles and Suspension
Axle configuration depends on payload and operating conditions:
| Axles | Typical Axle Capacity | Common Suspension |
| 3 Axles | 13–20 tons | Heavy-duty leaf spring |

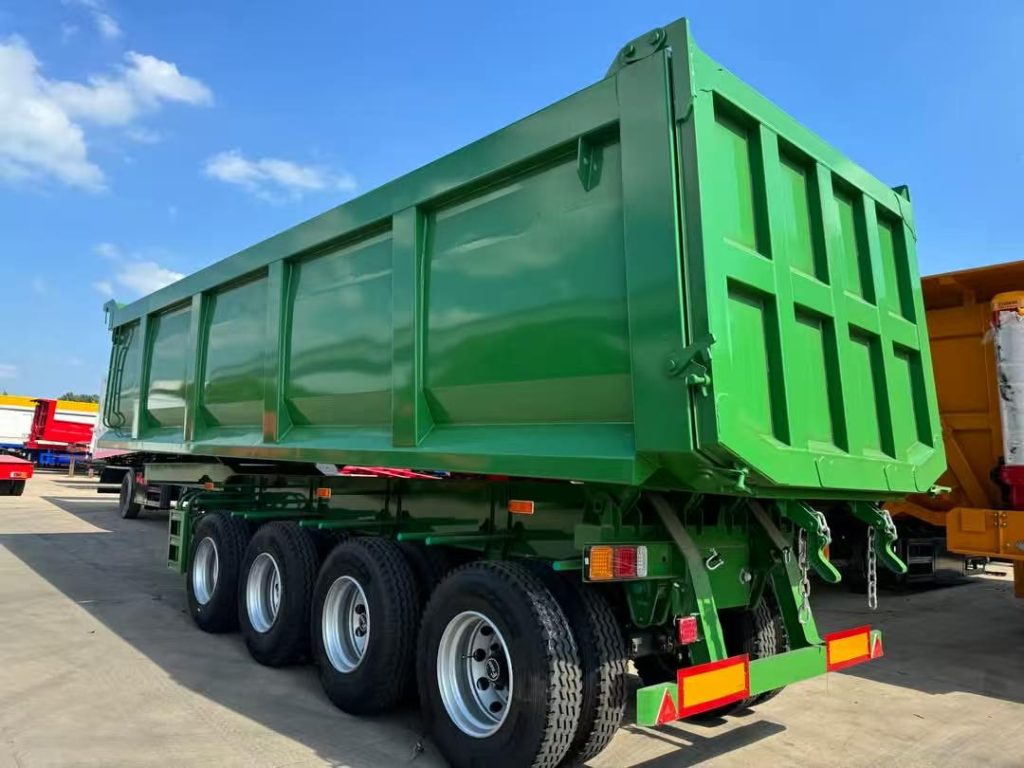

| 4 Axles | 12–16 tons | Mechanical / bogie suspension |
| 4+ Axles | Customized | Heavy-duty suspension |
Chassis and Frame
The frame utilizes a reinforced main beam, crossbeams, and flange structure to provide high load-bearing capacity and resistance to deformation. High-strength steel enhances durability, making it particularly suitable for rough terrain and mining environments.
Tires
Common tire sizes include:
12R22.5
315/80R22.5
385/65R22.5
Tire specifications can be customized based on load and road conditions.
Rear Tailgate
The tailgate controls material unloading and can be configured with the following functions:
Automatic opening
Manual locking
Sealed design
A robust and well-sealed tailgate helps ensure smooth material unloading and reduces material leakage.
Types of dump semi trailer
Different dump truck semi trailer designs are suited to different materials, working environments, and unloading requirements.
End Dump Trailer
The front of the dump body is raised by a hydraulic cylinder, allowing materials to discharge through the rear.
Best for: sand, gravel, stone, ore, and construction waste.
The dump body tilts to the left or right for lateral unloading.
Key benefits:
Stable unloading
Fast material discharge
Suitable for road construction and material spreading

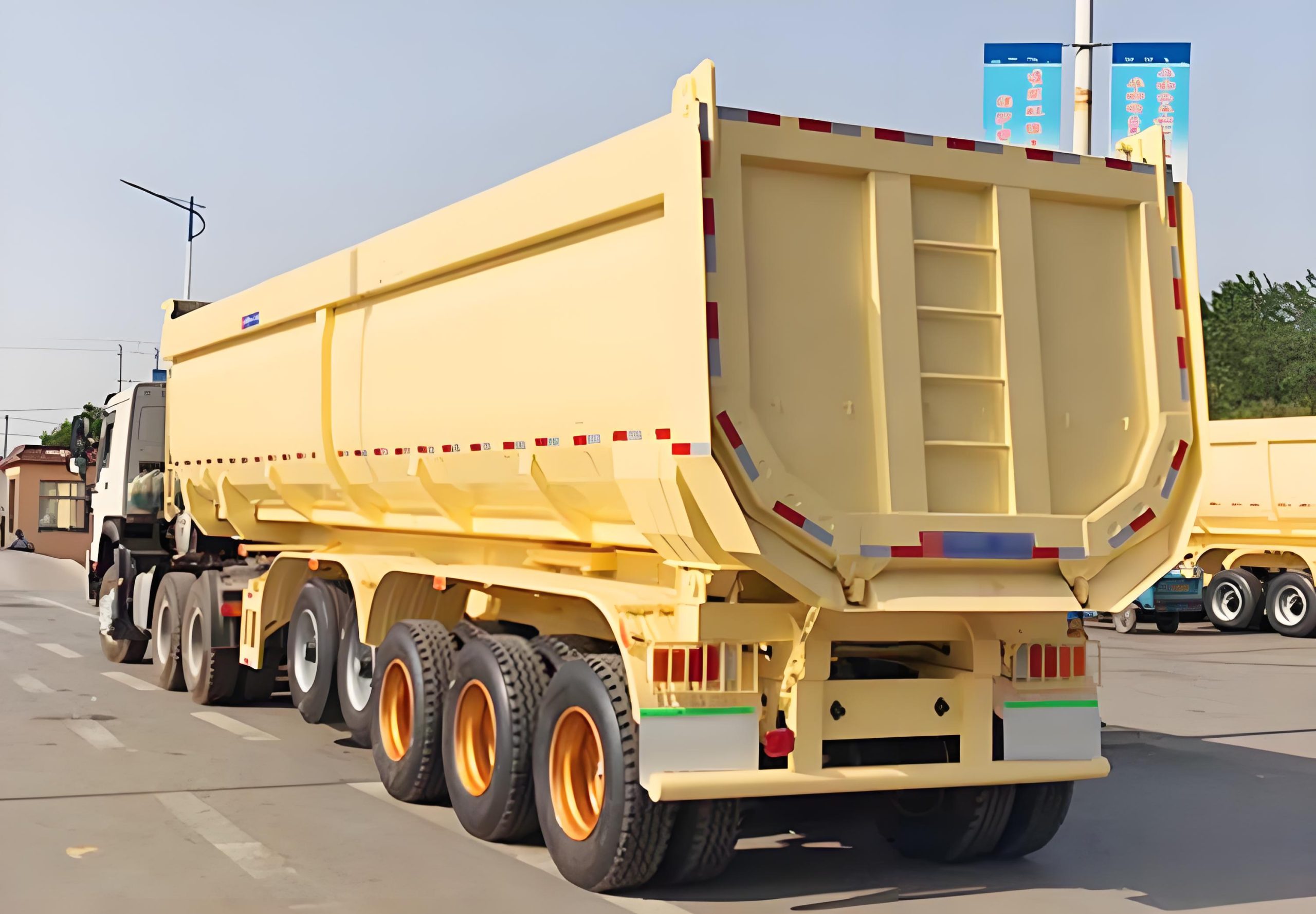

U-Shaped Dump Trailer
The curved U-shaped body helps materials slide out smoothly.
Best for: wet soil, clay, and other sticky materials that are difficult to unload.
Mining Heavy-Duty Dump Trailer
Designed for demanding mining operations, these trailers feature reinforced frames and heavy-duty components.
Typical capacity: 80–120 tons
Best for: short-distance transportation of ore, rock, and other heavy materials within mining sites.
Typical specifications for semi dump truck trailer
The following is a general specification range for commercial dump trailers:
| Specification | Typical Range / Options |
|---|---|
| Trailer Type | End Dump / Side Dump / U-Shaped |
| Axles | 2, 3, 4, or Multi-Axle |
| Payload | 30–100+ tons |
| Length | 9–16 m |
| Width | 2.5–3.2 m |
| Dump Body Volume | 20–60 m³ |
| Floor Thickness | 6–12 mm |
| Side Wall Thickness | 4–8 mm |
| Main Material | Q345 / Q550 / T700 Steel |
| Hydraulic System | HYVA or customized |
| Suspension | Mechanical / Air / Hydraulic |
| Tire Size | 12R22.5 / 315/80R22.5 |
| Braking System | Air Brake / EBS |
| Kingpin | 2″ or 3.5″ |
| Application | Sand, gravel, stone, ore, coal, construction waste |
In addition, customized configuration options are available based on the usage environment.
Advantages of semi dump truck trailer
Heavy duty dump semi trailer consist of several key components that work together to provide reliable loading, unloading, transport, and dumping performance.
1. High Unloading Efficiency
The hydraulic lifting system enables fast unloading, reducing waiting time and improving productivity.
2. High Load Capacity
Depending on the configuration, a dump semi trailer can carry up to 80 tons or more, making it suitable for heavy-duty transportation.
3. Lower Operating Costs
Compared with rigid dump trucks, semi dump trailers can help reduce fuel, labor, and maintenance costs.
4. Durable Construction
Reinforced frames and wear-resistant steel provide excellent durability and a longer service life under heavy loads.
5. Wide Applications
Suitable for transporting sand, gravel, stone, ore, coal, construction waste, and agricultural materials in construction, mining, road engineering, and other industries.
How to Choose the Best dump semi trailer
Choosing the right dump semi trailer depends on the cargo, payload, tractor, and road conditions.
1. Choose the Right Body Material
Hardox / NM steel – Suitable for mining and highly abrasive materials.
Q345 steel – Ideal for construction materials and general bulk cargo.
2. Select the Axles and Suspension
Mechanical suspension – Durable, simple, and cost-effective.
Air suspension – Provides smoother operation and better cargo protection.
3. Choose a Reliable Hydraulic System
A quality hydraulic system ensures smooth and safe tipping. HYVA and other reputable brands are suitable for frequent heavy-duty operations.
4. Match the Trailer with the Tractor
For a 6×4 tractor truck, around 420–480 hp is generally suitable for dump trailer combinations carrying approximately 50–70 tons, depending on road conditions and local regulations.
5. Consider Road Conditions
Mining / rough roads – Choose a reinforced heavy-duty dump trailer.
Highways / long-distance transport – A lighter rectangular or optimized dump body can improve fuel efficiency.
Dump semi trailer Maintenance Tips
Regular maintenance helps improve safety, reduce downtime, and extend the service life of your dump semi trailer.
1. Daily Checks
Check hydraulic oil levels
Inspect cylinders and hoses for leaks
Check tire condition and pressure
Inspect axles and suspension
2. Weekly Maintenance
Lubricate body hinges and moving parts
Check tailgate locking mechanisms
Inspect suspension bolts and fasteners
3. Monthly Maintenance
Check or replace hydraulic oil when necessary
Tighten chassis and structural bolts
Inspect the electrical and braking systems
Check the hydraulic system for abnormal wear
4. Safety Precautions
Never exceed the rated payload
Avoid tipping on slopes or unstable ground
Make sure the tailgate is securely locked before driving
Lower the dump body completely before road travel
FAQ
What is the difference between a semi dump truck trailer and a tipper semi trailer?
They are essentially the same. “Tipper” is more common in Europe and Africa, while “Dump semi trailers” are more common in the United States.
How long can a heavy duty dump trailer for sale last?
A good quality trailer can last 8 to 15 years, depending on usage and maintenance.
What are the common payload capacities?
Most models have a payload capacity between 40 and 80 tons, depending on the axle configuration.
Can I use a dump truck semi trailer to transport wet or sticky materials?
Yes – a U-shaped body design is recommended.
Conclusion
Heavy-duty dump trailer are among the most critical pieces of equipment for transporting bulk materials. Their robust construction, hydraulic lifting systems, and enormous load capacity make them ideal for applications in construction, mining, and infrastructure development. Choosing the right materials, axle configuration, hydraulic system, and suspension will ensure long-term durability and efficient operation.
