How to Select the Best dump truck semi trailer For Construction
Overview
Construction sites require fast, stable, and safe transport of bulk materials.Dump truck semi trailer play a crucial role in handling sand, gravel, soil, aggregates, demolition waste, and mining tailings. Choosing the right dump semi trailer can significantly improve efficiency, reduce fuel consumption, and extend fleet life.
This comprehensive guide introduces different types of dump semi-trailer, body structures, materials, hydraulic solutions, and key configurations. Several detailed comparison tables are also included to help buyers quickly understand key differences and select the most suitable model for their specific projects.
What is dump truck semi trailer?
Dump truck semi trailer, also known as a tipper semi-trailer, is a heavy duty transport trailer equipped with a hydraulic lifting system. This system allows the cargo bed to tilt, enabling rapid and efficient unloading of bulk materials.
Unlike traditional flatbed or freight semi trailers, dump semi trailers specifically design for transporting and unloading bulk materials. With a hydraulic unloading device, operators can unload quickly without manual intervention, significantly improving transport efficiency.
Common applications of dump semi trailer
The dump semi trailer specially design for transporting large quantities of bulk materials over both short and long distances.
Construction material transportation
Construction companies usually use dump truck semi trailers for the following types of transportation:
Sand transportation
Gravel hauling
Crushed stone transport
Cement materials
Construction waste removal
Its high loading capacity and rapid unloading capability make it an ideal choice for large construction projects.
Road and bridge construction
Infrastructure projects require continuous transportation of raw materials.
Dumping semi trailers are commonly used for:
Highway construction
Bridge projects
Road base material transportation
Asphalt-related material handling
The hydraulic unloading system helps to shorten the unloading time and improve project efficiency.
Urban construction and demolition projects
Urban development has created a huge demand for efficient material transportation.
Dump semi-trailers are suitable for:
Demolition waste
Excavated soil
Building debris
Construction residues
The rapid unloading function enables the operator to complete more transportation cycles each day.
Mining and quarrying operations
Dump truck semi-trailer are also used in small and medium-sized mining operations, transporting the following materials:
Coal
Ore
Limestone
Quarry stone
Mining waste
For larger-scale mining operations, specialized mining dump semi trailer with semi-trailer features may be required.
Carbon Steel vs Hardox vs Domex
The quality of the steel used directly affects the dump truck semi trailer lifespan.
| Steel Type | Model | Hardness (HB) | Thickness | Benefits | Best Use |
| Carbon Steel | Q345 / Q235 | 170–190 | 6–10 mm | affordable, easy to repair | soil, waste |
| Hardox | 450 / 500 | 420–470 | 4–6 mm | extremely wear-resistant, lighter | stones, gravel, ore |
| Domex | 700 / 900 | 250–300 | 4–6 mm | high strength, reduces weight | long-distance transport |
If the pallet frequently carries stones or coarse-grained materials, Hardox 450/500 material should be selected to improve its durability.
How to Choose a Suitable Hydraulic System for dump semi trailer
The hydraulic cylinder determines the lifting speed and stability.
Hydraulic Cylinder Options
| Cylinder Type | Brand | Stroke | Benefits | Typical Use |
| Front single-cylinder | HYVA | 110–214 | fastest lifting, stable | most construction dump trailers |
| Middle multi-cylinder | FC series | 120–250 | strong power, heavy payload | mining and heavy-duty use |
| Telescopic cylinder | Chinese brand | 90–170 | economical | light construction work |
Front-mounted HYVA columns are the preferred choice for construction sites due to their excellent stability and extremely low failure rate.
Axle, Suspension, and Tire Options
Choosing the appropriate running gear ensures safe transport and extends the heavy-duty dump trailer lifespan.
Recommended Specifications for semi dump trailer for sale Suitable for Construction Industry Use
| Component | Options | Benefits |
| Axles | 2/3 axles, 13T or 16T | good load capacity for road conditions |
| Suspension | Mechanical heavy-duty leaf spring | best for uneven construction sites |
| Tires | 12R22.5 / 315/80R22.5 | high durability and good traction |
| Braking System | ABS + air brake chamber | safer downhill braking |
| Landing Gear | JOST C200 | stable support |
Complete Specifications
Table 4: Technical Specifications of tri axle dump trailer semi
| Item | Specification |
| Rated Load | 40–80 tons |
| Trailer Length | 8.5 – 12.5 meters |
| Body Material | Q345 / Hardox 450 |
| Thickness | Floor: 6–8 mm / Side: 4–6 mm |
| Axles | 3×13T / 3×16T |
| Suspension | Heavy-duty leaf spring |
| Hydraulic | HYVA 191/214 |
| Braking | WABCO ABS optional |
| Tire | 12R22.5 or 315/80R22.5 |
| King Pin | 50mm / 90mm |
| Landing Gear | JOST double speed |
| Volume | 25–45 m³ |
| Unloading | Rear tipping |
Main Types of Dump Semi Trailers
Depending on the unloading method and application, they are generally divided into the following types:

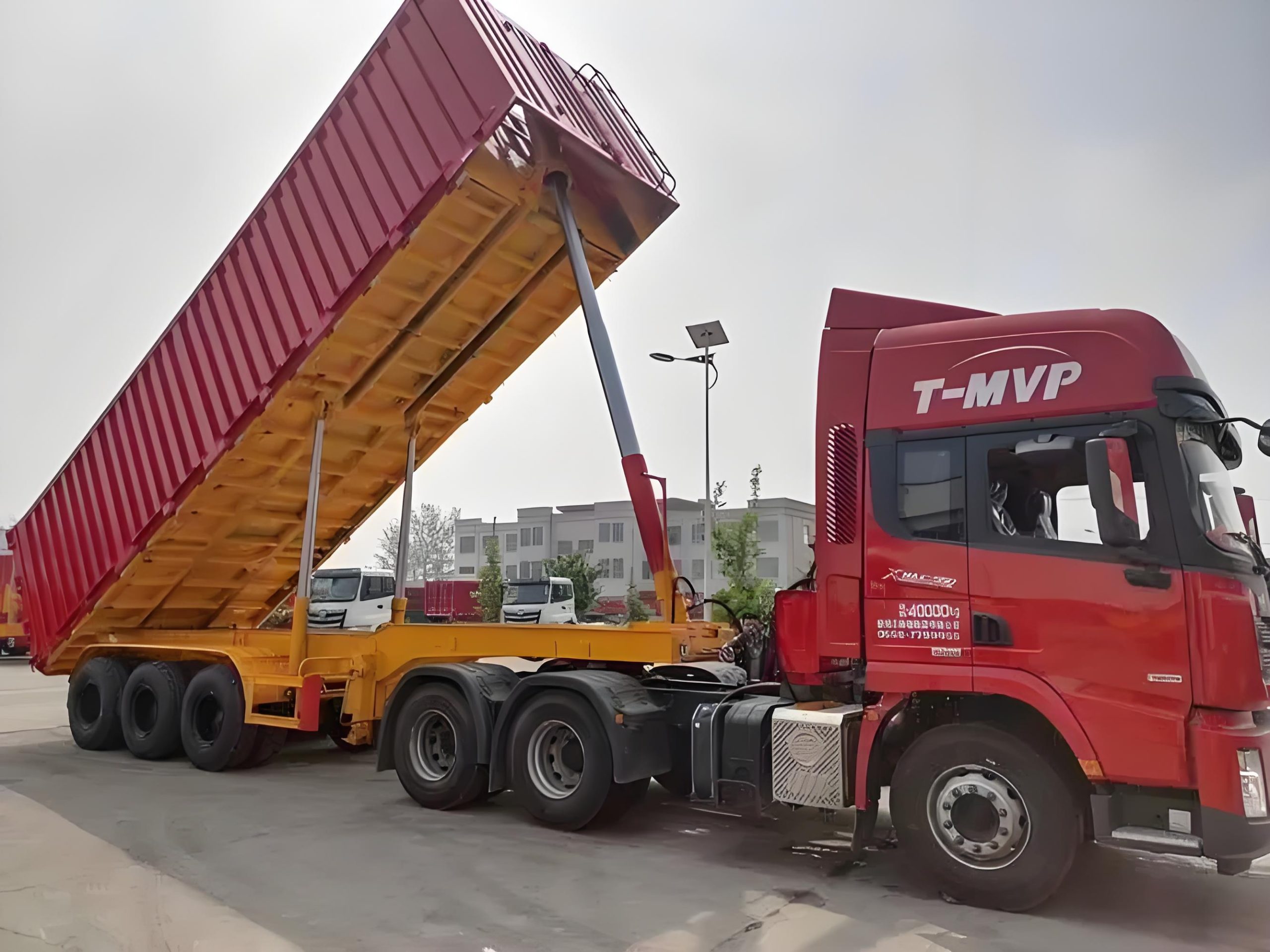

End Dump Semi Trailer
The end dump trailer is the most commonly used type in the industry.
The hydraulic system lifts the front of the trailer，Materials are discharged from the rear
Side Dump Semi Trailer
Side dump trailers unload materials by tilting the body to one side.
Dumps cargo from the left or right side
Bottom Dump Semi Trailer
Also known as a belly dump trailer, this type releases material from the bottom.
How to Choose the Right Heavy Duty Dump Semi-Trailer
Choosing the right dump semi trailer for garbage transport depends on your cargo type, working environment, and operational needs. A well-matched vehicle can improve efficiency, ensure safety, and extend service life.
1. Dump body Type
Different cargo types require different body designs.
Sand/Gravel → U-shaped body
Smooth internal surfaces reduce material adhesion, allowing for faster unloading.
Soil/Construction Waste → Rectangular body
More robust structure, suitable for heavy and irregularly shaped materials.
Choosing the appropriate body shape helps improve unloading efficiency and reduce wear.
2. Loading Requirements
Loading capacity determines the axle configuration and structural strength.
| Load Type | Recommended Configuration |
| Heavy-duty transport | 3 axle, 4 axle or 5 axle dump trailer 40 Ton,50 Ton,80 Ton,100 Ton |
| Medium load | two axle dump semi trailer 20 Ton 30 Ton |
More axles allow for more balanced weight distribution, greater load capacity, and higher stability.
3. Road Conditions
The operating environment plays a crucial role in trailer selection.
Mining areas or rugged terrain: Choose a reinforced chassis, heavy-duty suspension, and stronger materials.
Highways or paved roads: Lightweight design improves fuel efficiency and reduces operating costs. Matching the trailer to road conditions ensures a longer service life and safer operation.
4. Hydraulic System
The hydraulic system is crucial for the vehicle’s tilting performance.
Choose a reliable and proven hydraulic brand.
Ensure smooth lifting speeds and stable operation.
Check for good sealing to prevent fluid leaks.
A high-quality hydraulic system improves safety, reduces failure rates, and ensures stable unloading performance.
Advantages of Dump Semi Trailer
Dump Semi Trailer design allows for faster operating speeds and reliable performance even in harsh environments.
1. High Transport Efficiency
Dump Semi Trailer are designed to carry large quantities of bulk materials in a single transport.
High load capacity reduces the number of trips required.
Improves overall logistics efficiency.
2. Rapid Unloading with Hydraulic Systems
Hydraulic lifting systems enable rapid and automated unloading operations.
Significantly reduces unloading time compared to manual methods.
Reduces labor requirements.
Improves turnaround efficiency at construction sites.
3. Suitable for Long-Distance Transport
Heavy duty Dump Semi Trailers design to ensure robustness and stability over long distances.
A robust chassis and suspension system ensure reliable performance, suitable for highways, construction roads, and mining roads. It maintains high efficiency even under sustained high-intensity operation.
FAQ – Dump Truck Semi Trailer
What is the difference between a dump truck and a dump semi trailer?
A dump truck is a single vehicle, while a dump semi trailer works with a tractor and has higher load capacity.
How much weight can a dump semi trailer carry?
Most models can carry between 20 and 100 tons depending on axle configuration.
What are the main types of dump semi trailers?
End dump, side dump, and bottom dump trailers.
How does the unloading system work?
A hydraulic system lifts the trailer body, allowing materials to slide out by gravity.
