Fuel Tanker Trailer vs Oil Tanker Trailer: How to Choose the Right Tank Type

In petroleum logistics, fuel station supply, oilfield service, mining support, and regional liquid transport, the correct tank type affects safety, loading efficiency, unloading speed, maintenance cost, and road performance. A fuel tanker trailer usually focuses on refined fuel such as diesel, gasoline, kerosene, aviation fuel, and light fuel oil. Meanwhile, an oil tanker trailer may transport crude oil, lubricating oil, edible oil, hydraulic oil, palm oil, or other liquid oil products.

However, these two tanker types should not be selected only by tank volume. Instead, the practical decision should consider cargo medium, tank material, tank compartment layout, pump and discharge system, anti-static design, safety valves, axle quantity, road condition, and destination country requirements. Therefore, this guide explains how to compare both tank types before confirming a fuel tank semi trailer or oil tanker semi trailer specification.

What Is a Fuel Tanker Trailer?

First, a fuel tanker trailer is designed for refined petroleum transport. Common cargo includes diesel, gasoline, kerosene, aviation fuel, and similar light fuel products. Because these liquids can be flammable, the design usually gives more attention to leakage prevention, vapor control, anti-static protection, emergency shut-off valves, and safe discharge.

Also, fuel delivery routes often need several tank compartments. One trailer may carry diesel in one compartment and gasoline in another. Therefore, each tank compartment should have reliable internal separation, independent valves, clear piping, safe manhole access, and practical unloading control.

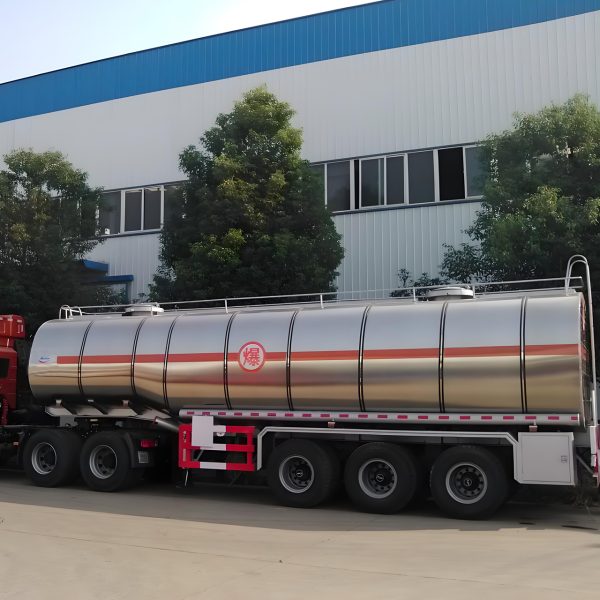

What Is an Oil Tanker Trailer?

By comparison, an oil tanker trailer covers a wider group of liquid oil applications. It may carry crude oil, lubricating oil, edible oil, hydraulic oil, base oil, palm oil, or other industrial oil media. Because “oil” is a broad term, the required tank material, discharge method, cleaning access, and safety accessories can change greatly.

For example, crude oil may need a strong tank body and a pump matched to viscosity. Meanwhile, edible oil may need stainless steel, cleaner internal surfaces, and hygienic discharge parts. Therefore, the exact oil type should be confirmed before discussing capacity or price.

Fuel Tanker vs Oil Tanker: Main Differences

Although both tank types use a tank body, chassis, axles, suspension, valves, and discharge pipes, the design focus is different. In short, fuel transport usually focuses on fire risk, static electricity, leakage control, and compartment safety. Oil transport often focuses on viscosity, cleanliness, temperature, material compatibility, and unloading efficiency.

Comparison Point	Fuel Tanker Trailer	Oil Tanker Trailer
Typical cargo	Diesel, gasoline, kerosene, aviation fuel, light fuel oil	Crude oil, lubricating oil, edible oil, hydraulic oil, base oil
Main concern	Flammability, static electricity, vapor, leakage control	Viscosity, cleanliness, temperature, corrosion, discharge speed
Tank compartment	Often multi-compartment for different fuel grades	Single or multi-compartment, depending on oil type
Discharge system	Gravity discharge, pump discharge, bottom loading option	Pump discharge, gravity discharge, heating-assisted discharge
Tank material	Carbon steel, aluminum alloy, stainless steel when required	Carbon steel, stainless steel, aluminum alloy, or lined tank

Key Specifications That Should Be Compared

Tank material

First, tank material affects tare weight, corrosion resistance, cleaning method, repair difficulty, and service life. Carbon steel is widely used for diesel, crude oil, and many industrial oil transport applications. It offers strong structure and practical cost control.

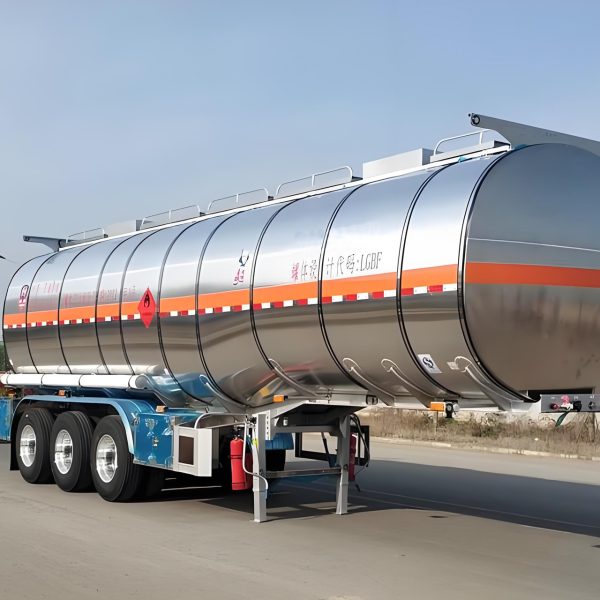

Meanwhile, aluminum alloy can reduce tare weight and improve payload efficiency under suitable road rules. It is also common in some refined fuel transport markets. However, repair conditions and material cost should be considered before selecting an aluminum tank.

In addition, stainless steel is suitable for edible oil, high-purity liquids, selected corrosive media, and cleaner transport conditions. It improves internal cleanliness and corrosion resistance. However, it increases cost, so the cargo requirement should justify the material choice.

Tank compartment layout

Next, the tank compartment plan should follow the delivery route. Multi-compartment design is useful when one trip needs several fuel grades. For example, diesel and gasoline can move in separate chambers with independent discharge control.

However, more compartments also mean more manholes, more valves, more seals, and more maintenance points. Therefore, the best tank compartment plan should balance route flexibility with long-term maintenance simplicity.

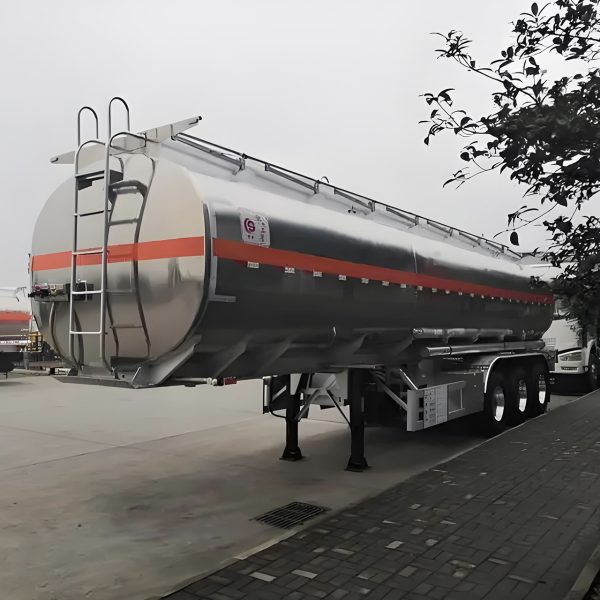

Pump and discharge system

Also, the discharge system affects daily operation more than many specifications. Gravity discharge is simple, stable, and easy to maintain. It suits many fuel stations, depots, and receiving tanks with suitable height and pipe layout.

However, pump discharge is often better for mining sites, construction projects, oilfields, remote storage tanks, and higher receiving tanks. In these cases, pump flow rate, hose length, pipe diameter, valve size, and power source should be confirmed together.

Safety valves and anti-static protection

For refined fuel, anti-static protection is essential. During loading and unloading, liquid movement can create static electricity. Therefore, grounding cables, conductive hoses, anti-static devices, emergency shut-off valves, and safe piping layout should be planned from the beginning.

For oil transport, safety still matters even when vapor risk is lower. Leakage, contamination, weak sealing, wrong gasket material, and poor pipe protection can create serious losses. Therefore, valve material and sealing parts should match the liquid property.

Capacity and Axle Selection

Capacity should not be selected by volume alone. Instead, tank volume, liquid density, axle load, tractor matching, road regulation, and legal payload should be calculated together. A 45,000-liter tank may be useful for one liquid but overloaded with another denser medium.

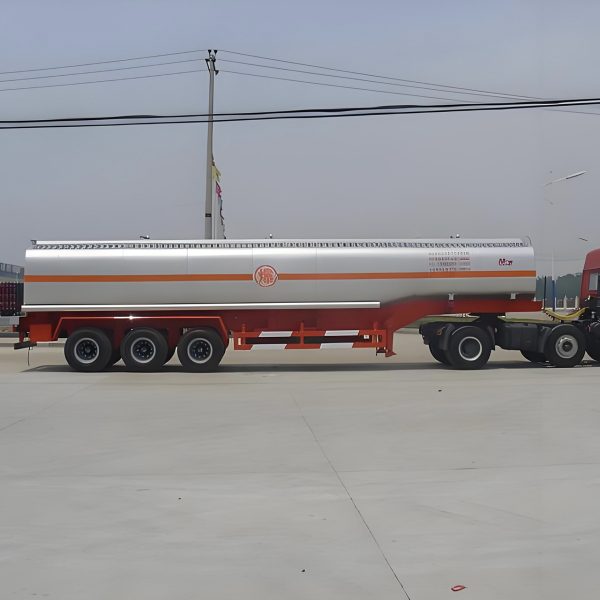

Generally, a 2-axle tanker suits lower-capacity work or shorter routes. A 3-axle tanker often gives a balanced solution for regional and long-distance petroleum transport. Meanwhile, a 4-axle tanker may suit heavier loads where local road rules allow it.

Operating Scenario	Configuration Direction
Urban fuel delivery	Multi-compartment tank, safe valve layout, easy discharge access
Regional diesel transport	Medium to large tank, 3 axles, practical suspension selection
Mining fuel supply	Reinforced chassis, pump discharge, durable suspension, protected valves
Heavy oil transport	Pump matched to viscosity, possible heating or insulation option
Edible oil transport	Stainless steel tank, clean internal surface, hygienic discharge parts

How to Choose the Right Configuration

Start with cargo data

First, the liquid name should be clear. Diesel, gasoline, crude oil, palm oil, and hydraulic oil do not need the same tank design. Therefore, cargo density, viscosity, flash point, corrosiveness, loading temperature, and discharge temperature should be prepared before quotation.

For example, gasoline usually needs stronger vapor and static control. Meanwhile, heavy oil may need a pump and pipe system designed around viscosity. In other words, the medium decides the tank body, not the other way around.

Match unloading method with the site

Next, loading and unloading conditions should be reviewed early. Some depots use top loading, while others use bottom loading. Some terminals may require vapor recovery, API adapters, anti-overflow probes, or specific valve standards.

Also, remote fuel supply work may require pump discharge and longer hoses. In contrast, station delivery may need clean piping, fast compartment switching, and safe low-position operation. Therefore, the discharge system should follow the site, not only the drawing.

Consider tractor matching and road condition

In rough-road markets, tanker stability is important because liquid cargo moves during braking and turning. Therefore, suspension type, tire specification, chassis reinforcement, and valve protection should match the route. Mechanical suspension may suit demanding roads and easier maintenance conditions.

Meanwhile, the tractor must match the tank trailer. Fifth wheel height, kingpin size, air line connection, electrical socket, engine power, brake performance, and gross combination weight all affect daily operation. For fleet planning, a matching used tractor truck can also be reviewed when both tractor and trailer are needed.

Check destination market requirements

Additionally, destination country rules should guide braking, lighting, reflective marking, axle load, tank marking, emergency equipment, and dangerous goods transport details. Some projects may mention ADR-style accessories, API bottom loading, ABS, EBS, or local petroleum terminal requirements.

For international road carriage of dangerous goods, the UNECE ADR dangerous goods transport guidance is a useful official reference. Therefore, fuel classification, tank marking, emergency equipment, inspection expectations, and local operating rules should be checked before production and shipment.

Boca Vehicle Solution for Export Tanker Projects

For export tanker projects, Boca Vehicle supports configuration discussion based on cargo medium, loading capacity, axle quantity, road condition, discharge method, and destination country. Therefore, a general tanker request can become a clear technical solution before production.

In addition, tank material, compartment quantity, manhole position, valve layout, pump system, hose box, walkway, suspension, tire, and braking options can be adjusted according to the working scenario. This is useful for petroleum transport, fuel station supply, mining refueling, oilfield liquid movement, and long-distance regional delivery.

Before shipment, photos and videos can support visible detail confirmation, including tank body, chassis, valve box, landing gear, tires, lights, paint, and accessories. Also, basic export document support can help the shipping process move more smoothly.

Common Mistakes to Avoid

First, avoid choosing only by volume. A larger tank can increase transport capacity, but it can also create overload problems when the cargo density is high. Therefore, payload, tank volume, axle load, and local road rules should be checked together.

Second, avoid using one tank design for every liquid. Diesel, gasoline, lubricating oil, crude oil, and edible oil may need different materials, valves, pumps, and cleaning methods. Thus, cargo information should lead the specification.

Third, avoid ignoring unloading conditions. A tank may transport liquid safely but unload slowly if the pump, pipe, hose, or valve size does not match the site. As a result, discharge planning should happen before production.

Finally, avoid leaving compliance checks until shipment. Local approval, dangerous goods requirements, road registration, lighting standards, and terminal rules may affect the design. Therefore, these details should be reviewed before final drawing confirmation.

Extended Reading

For deeper tanker trailer planning, the following BOCA resources are more closely related to fuel, oil, tank material, and tanker configuration.

• What Is a Tanker Semi Trailer? Structure, Types, and Applications
• Top Tanker Trailer Manufacturers and Tank Semi Trailer Types
• 45000 Liters Fuel Tanker Trailer for Sale in Tanzania
• Oil Tanker Trailer for Sale in Sierra Leone

FAQ

Is a fuel tanker trailer the same as an oil tanker trailer?

Not exactly. A fuel tanker trailer mainly carries refined fuel such as diesel, gasoline, kerosene, and aviation fuel. An oil tanker trailer may carry crude oil, lubricating oil, edible oil, hydraulic oil, or other liquid oils. Therefore, material, valves, compartments, and discharge system should match the exact medium.

How many tank compartments should be selected?

The answer depends on route planning and cargo grades. Multi-compartment tanks suit fuel distribution because different fuels can move in one trip. However, single-compartment tanks may be better for one oil product, easier cleaning, and simpler maintenance.

Can the discharge system be customized?

Yes. Common options include gravity discharge, pump discharge, top loading, bottom loading, vapor recovery, different hose lengths, and different valve sizes. However, liquid property and loading terminal rules should guide the final design.

Which tank material is better for fuel or oil transport?

There is no single best material. Carbon steel is practical for many petroleum applications. Aluminum alloy helps reduce tare weight. Stainless steel suits cleaner liquids, edible oil, and selected corrosive media. Therefore, cargo type and operating budget should decide the material.

What details are needed for a quotation?

A useful quotation needs cargo type, density, required volume, tank compartment quantity, tank material, axle quantity, suspension type, discharge method, road condition, destination country, and tractor information. Also, any local registration or inspection requirement should be shared early.

For a broader specification checklist covering fuel, oil and chemical transport, see our tanker trailer buying guide.

Final Selection Advice

Overall, the right tanker choice starts with the transported liquid. Fuel transport needs careful anti-static design, emergency valves, sealing performance, and compartment planning. Oil transport may need stronger attention to viscosity, temperature, material compatibility, cleaning, and discharge efficiency.

For the next technical step, send cargo type, loading capacity, axle quantity, road condition, destination country, and discharge method to Contact Boca Vehicle. Then, the configuration can be reviewed as a fuel tanker trailer, oil tanker trailer, or customized tanker semi trailer solution.

• First, confirm liquid name, density, viscosity, flash point, and loading temperature before discussing tank volume.
• Next, match tank material, tank compartment, pump, valve, axle, suspension, and tire choices with the real route.
• Finally, check destination country rules early, especially for petroleum transport, braking, lighting, marking, and registration.
