What Is a Lowbed Semi Trailer? Complete Guide for Transport
Overview
Lowbed semi trailer are among the most widely used heavy-duty transport vehicles globally. Designed with an ultra-low chassis height, robust steel frame, and large-capacity axles, low bed semi trailer are the preferred equipment for transporting bulldozers, excavators, loaders, cranes, mining equipment, and large construction equipment.
This guide will provide you with all the information you need about china lowbed semi-trailer—including design features, technical specifications, applications, axle configurations, loading methods, and purchasing advice—to help you choose the right model for your business.
Lowbed Semi Trailer Video
What is a Lowbed semi trailer?

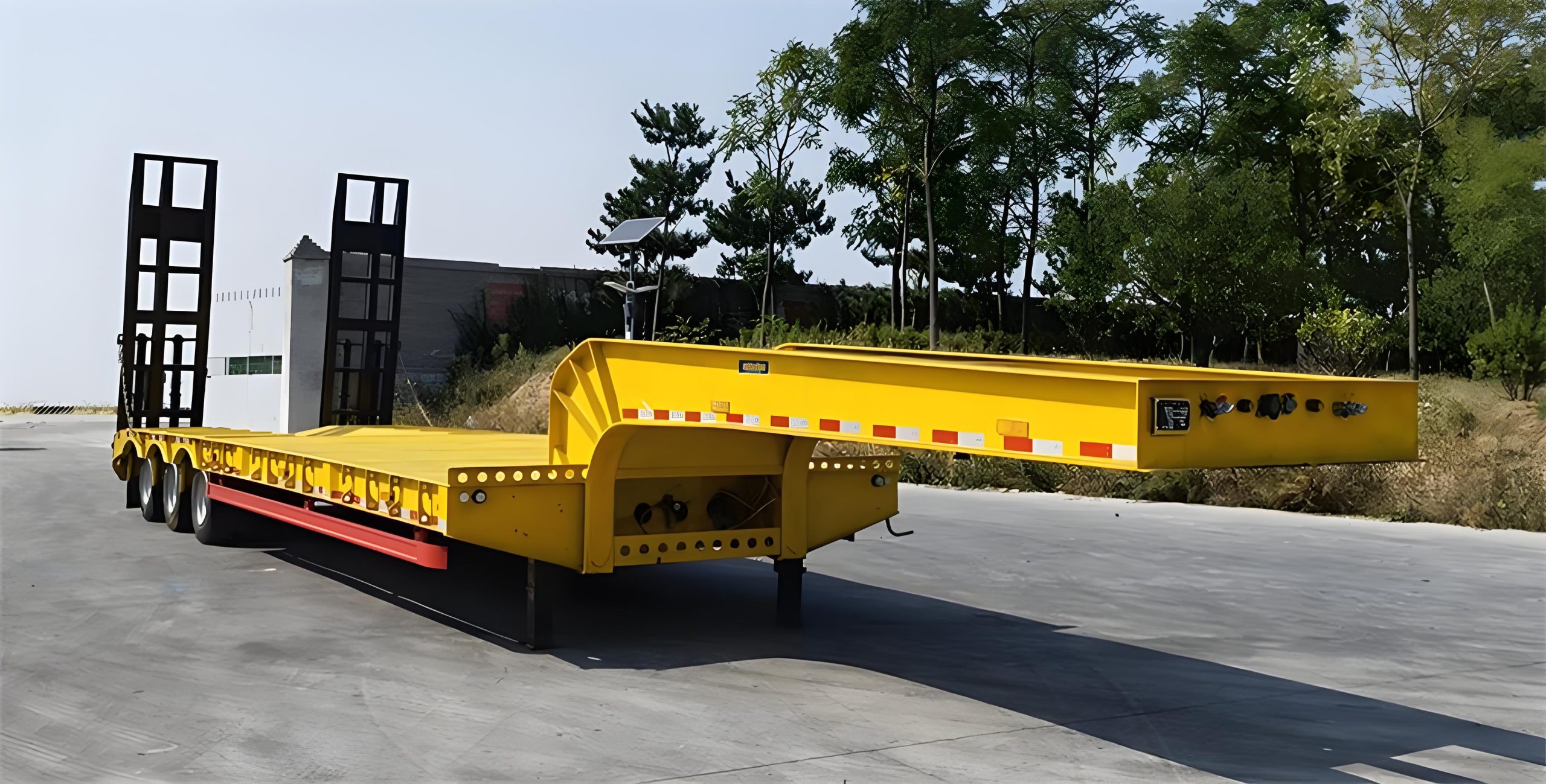

A Lowbed semi trailer for sale is a trailer designed for heavy-duty transport with a very low platform height, typically 800 to 1100 mm above the ground. This special low platform structure allows it to transport equipment exceeding the height limits of standard lowbed trailer truck.
china lowbed semi trailer typically consist of the following components:
Gooseneck (removable or non-removable)
Main deck (working platform)
Rear frame
Heavy-duty axles
Hydraulic or mechanical suspension
Due to their low center of gravity, heavy duty Lowbed semi trailer offer exceptional stability when transporting extremely heavy or tall equipment.
Why heavy duty lowboy semi trailer are Crucial for Heavy Equipment Transport
2.1 Facilitates the Transport of Large Equipment
Most construction and mining equipment exceeds legal height limits when loaded onto standard flatbed semi trailers.
Truck lowbed trailer solve this problem with their ultra-low chassis, offering advantages such as:
Greater headroom
Safer transport
Capacity to move extremely large machinery
2.2 High Load Capacity
Depending on axle configurations, low-bed trailers can carry loads ranging from 30 to 150 tons or more.
Typical Capacity:
| Axle Configuration | Pay Load Capacity |
| 2 axle lowbed semi trailer | 30–45 tons |
| 3 axle lowbed semi trailer | 50–80 tons |
| 4 Axle Lowboy semi trailer | 80–120 tons |
| Multi-Axle Lowboy semi trailer | 150+ tons |
2.3 Safer on Uneven or Rough Roads
A lower center of gravity enhances 3 axle lowbed trailer stability, especially in situations such as:
cornering
driving on slopes
transporting large machinery
2.4 Durability and Long Service Life
Low profile semi trailer are constructed with high-strength steel, such as Q345/Q550, offering advantages such as:
high impact resistance
excellent bending strength
long service life even under harsh conditions.
Main Components of lowloader semi trailer
To understand how lowbed semi trailer work, it’s essential to understand their main components:
3.1 Gooseneck Structure
Types include:
Removable gooseneck lowboy trailer(rgn lowboy trailer): Most commonly used for lifting heavy equipment from the front
Fixed neck lowboy trailer: Lower cost, but less convenient for loading
Detachable gooseneck lowboy trailer is ideal for excavators, bulldozers, and loaders.
3.2 Main Deck
This is the work platform specifically designed for loading machinery.
Common Length: 6 to 12 meters
Common Width: 2.8 to 3.5 meters
3.3 Rear Structure
Supports the wheels and suspension system, ensuring vehicle stability and load-bearing capacity.
3.4 Low bed semi-trailer Suspension Type
Mechanical spring suspension (cost-effective, durable)
Air suspension (smooth ride, height adjustable)
Hydraulic suspension (excellent option for heavy loads)
3.5 Low deck semi trailer Ramps
Spring terraces
Hydraulic ramps
Folding ramps
Removable ramps/ladders
These facilitate loading machinery onto the deck.
Types of low bed semi trailer for sale
4.1 Standard china lowbed semi trailer
Equipped with a fixed gooseneck; suitable for most machinery.
4.2 Detachable lowboy trailer for sale(rgn lowboy trailer for sale)
Loadable from the front; ideal for large equipment.
4.3 Extendable lowboy semi trailer
With decks extending to 20-30 meters, ideal for:
Wind tower sections
Long beams
Oversized building components
4.4 Multi Axle lowbed semi trailer,heavy duty lowboy trailer
Designed for extremely heavy loads (suitable for mining equipment, transformers, generators).
Common Applications of semi trailer low bed
Semi lowbed trailer are widely used in:
Construction Projects
Transporting bulldozers, graders, excavators, and road rollers
Mining Operations
Moving large ore transport trucks, crushers, and drilling equipment
Energy and Power Projects
Transporting large transformers, turbines, and wind turbine components
Industrial Machinery Transportation
Moving large factory equipment
Agricultural Equipment
Mobile harvesters, tractors, and large agricultural machinery
Typical Technical Specifications (Examples)
The following are reference specifications for a three axle 60 ton lowboy trailer for sale:
| Item | Specification |
| Overall Length | 13,000 mm |
| Deck Height | 900 mm |
| Loading Capacity | 60 tons |
| Main Beam | Q345B high-strength steel |
| Axles | 3 Axles, 13 ton/axle |
| Suspension | Mechanical or Air |
| Tires | 12R22.5 |
| Ramps | Hydraulic or Mechanical |
| King Pin | 90# / 50# |
| Landing Gear | JOST 28 ton |
Loading Methods for lowboy equipment trailer
7.1 Loading with a Ramp
A rear ramp facilitates loading machinery onto the deck.
7.2 Using a Detachable Gooseneck Connector
Once the gooseneck is detached, the machine can be driven directly onto the deck from the front.
7.3 Using a Crane
For extremely heavy or difficult-to-move loads.
How to Choose the Right china lowbed semi trailer
The following are key factors to consider:
8.1 What equipment are you transporting?
Match the trailer’s roof height, width, and load capacity to your machinery.
8.2 Must-Have Load Capacity
Don’t just choose a “just enough” load capacity—always leave a 20% to 30% safety margin.
8.3 Gooseneck Type
Removable gooseneck lowboy trailer → Suitable for heavy construction machinery
Fixed neck lowboy trailer→ More economical
8.4 Steel Material
High-strength steel is crucial for the long-term durability of the product.
8.5 Suspension System
Select according to terrain and cargo stability requirements.
8.6 Local Road Regulations
Meet the following legal limits:
Axle weight
Total chassis height
Overall length
Advantages of Purchasing Low Flatbed Semi Trailers from China
China is one of the major exporters of low flatbed trailer for sale due to:
Competitive pricing
High-quality materials
Customizable axle configurations
Fast production times
Global parts supply
Many global buyers choose Chinese manufacturers because of their cost-effectiveness.
Conclusion
Lowbed semi-trailers are an essential solution for transporting heavy construction, mining, and industrial equipment. Their low chassis height, high load capacity, and robust steel structure ensure the safe, stable, and efficient transport of oversized equipment.
Whether you need a standard three axle lowbed semi trailer, a detachable gooseneck lowbed trailer, or a multi axle heavy-duty lowbed trailer truck, choosing the right model design can significantly improve your operational efficiency and transport safety.
