Complete Guide to Container Chassis Trailer
A container chassis is one of the most important trailer solutions for modern port, terminal, warehouse, and cross-border logistics. It is designed to carry ISO shipping containers such as 20ft, 40ft, and 45ft containers safely between ports, rail yards, warehouses, and distribution centers.
Compared with a general flatbed trailer, a container chassis trailer uses a lighter skeletal frame and dedicated twist locks to secure the container corner castings. This makes loading faster, reduces unnecessary trailer weight, and improves efficiency for companies that mainly transport standard containers.
Boca Auto supplies 20ft, 40ft, 45ft, 2 axle, 3 axle, and 4 axle container chassis options for different road conditions, container sizes, axle load rules, and logistics routes. Buyers can choose the right chassis based on cargo weight, destination country, port operation method, and long-term maintenance needs.

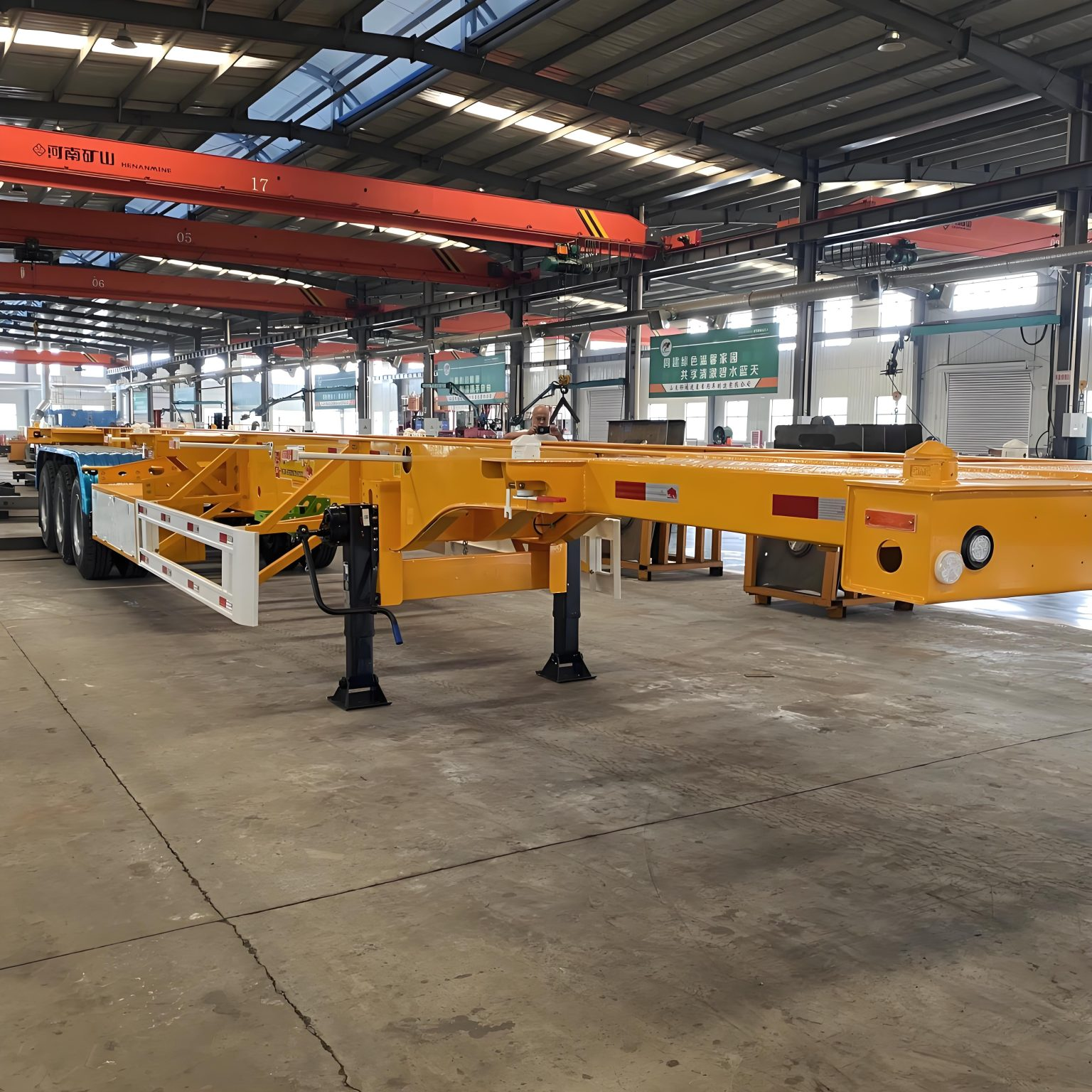

Container chassis trailer
What Is a Container Chassis Trailer?
A container chassis trailer is a skeletal semi trailer designed to carry standard ISO shipping containers. Instead of a full flat loading platform, it uses a strong steel frame, twist locks, axles, suspension, landing gear, and kingpin connection to support and secure the container during road transport.
The biggest difference is purpose. A flatbed trailer can carry many cargo types, while a container chassis is mainly built for 20ft, 40ft, and 45ft container transport. For port operators, container depots, freight companies, and cross-border logistics fleets, this special design improves loading speed, reduces unnecessary weight, and keeps container handling more stable.
How Does a Container Chassis Work?
A container chassis works by matching the trailer frame to ISO container corner castings. When the container is lowered onto the chassis by a crane, reach stacker, top loader, or terminal equipment, the corner castings align with the twist locks on the frame. Once the twist locks are engaged, the container is fixed to the chassis and the load is transferred through the main beams, cross members, axles, and suspension system.
This is why twist lock position, frame strength, axle configuration, and suspension choice matter. A well-designed container chassis trailer keeps the container stable during acceleration, braking, turning, rough roads, and long-distance highway transport.
Main Types of Container Chassis Trailers
Container chassis trailers are manufactured in different lengths, axle configurations, and frame designs. The right model depends on the container size, load weight, road law, route distance, and operating environment. The following types can stay in the existing page structure, but the wording should focus on real use scenarios instead of repeating parameters.

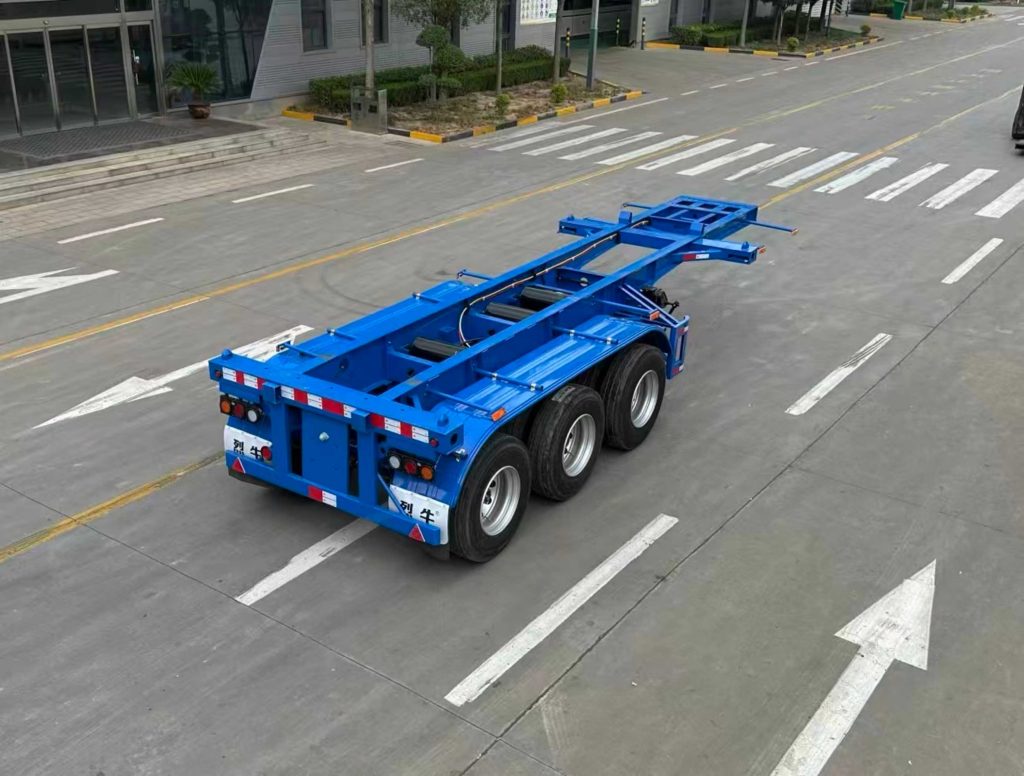

20ft Container Chassis Trailer
A 20ft container chassis trailer is compact and easy to maneuver, making it suitable for port-to-warehouse transport, container yards, industrial zones, and short-distance drayage. It is often chosen when buyers need to move single 20ft containers, especially heavy cargo where a shorter chassis can be more practical.
20ft Container Chassis Trailer

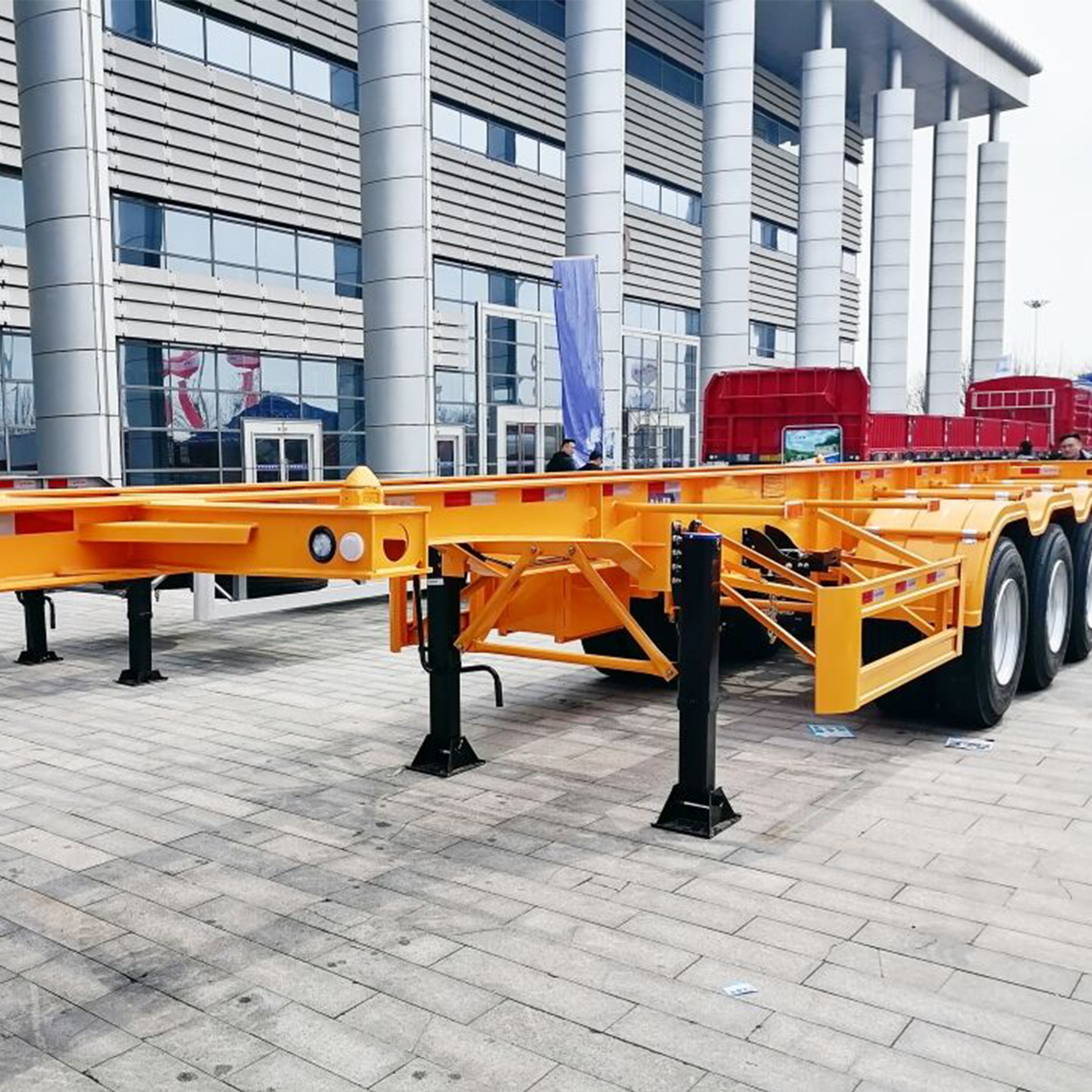

40ft Container Chassis Trailer
A 40ft container chassis trailer is the most common choice for international container logistics. It can be configured for one 40ft container, one 40HQ container, or in some designs two 20ft containers. For freight companies, this model offers a good balance between capacity, stability, and daily operating efficiency.
40ft Container Chassis Trailer
45ft Container Chassis Trailer
A 45ft container chassis trailer is designed for longer containers and routes where 45HQ containers are commonly used. Buyers should confirm overall length, turning radius, axle load rules, and road restrictions before choosing this model.
45ft Container Chassis Trailer
2 Axle, 3 Axle and 4 Axle Container Chassis
Axle quantity should be selected according to cargo weight and local road regulations. A 2 axle container chassis is suitable for lighter routes and stricter weight-control markets. A 3 axle container chassis trailer is a common global option for standard heavy container transport. A 4 axle container chassis trailer can be used where higher load distribution or road law compliance is required.
Extendable Container Chassis Trailer
An extendable container chassis trailer can adjust its frame length to support different container sizes. It is useful for fleets that handle 20ft, 40ft, and 45ft containers on mixed routes. Although the initial cost may be higher, it can reduce the need to buy several fixed-length chassis units.
Gooseneck Container Chassis
A gooseneck container chassis lowers the container sitting height, which is especially helpful for 40HQ and 45HQ containers. This design can improve stability, reduce overall transport height, and make the trailer more suitable for long-distance routes with height limits or crosswind risk.
Terminal and Heavy-Duty Drop Frame Chassis
Terminal chassis are mainly used inside ports and container yards where loading frequency is high but travel distance is short. Heavy-duty drop frame chassis can support heavier or specialized container transport tasks when the route and loading conditions require a lower frame or stronger structure.
Structural Components of a Container Chassis Trailer
The structure of a container chassis trailer should be judged by how it supports and secures the container in real transport. Main beam strength, twist lock quality, axle configuration, suspension, landing gear, tires, brake system, electrical wiring, and kingpin quality all affect safety, service life, and maintenance cost.
Main Beam and Frame
The main beam is the backbone of the container chassis. It carries the container load and transfers stress to the axle and suspension system. For heavy containers or rough roads, buyers should pay attention to steel grade, beam height, flange thickness, web thickness, welding quality, and anti-corrosion treatment.
Twist Locks
Twist locks are the key safety parts that secure the container corner castings to the chassis. They prevent the container from sliding, lifting, or shifting during braking, turning, and rough-road transport. For high-frequency port use, lock quality and ease of inspection are especially important.
Axles and Suspension
Axles and suspension determine how the container chassis trailer handles load distribution, road impact, and long-distance operation. Mechanical suspension is simple and durable for rough roads, while air suspension can improve ride stability and protect cargo on highway routes.
Landing Gear
Landing gear supports the chassis when it is disconnected from the tractor head. For loaded container operations, buyers should choose a reliable landing gear system with enough support capacity, smooth lifting action, and durable surface protection.
Tires, Brake System, Electrical System and Kingpin
Tires affect road grip, fuel use, and service interval. The brake system affects safety under heavy loads. Electrical wiring and lamps must be waterproof and suitable for long-distance road use. The kingpin connects the container chassis to the tractor, so material quality and correct size should be confirmed before ordering.
Advantages of Container Chassis Trailer for Logistics
A container chassis trailer gives logistics operators several practical advantages: faster container loading and unloading, lighter skeletal structure, lower maintenance needs, reliable container locking, and better compatibility with port and terminal equipment. For companies that mainly move standard containers, it is usually more efficient than using a general-purpose flatbed trailer.
Container Chassis Trailer Specifications
The following container chassis trailer specifications are for reference only. Boca Auto can adjust the frame length, axle quantity, twist lock position, suspension, tires, landing gear, and brake system according to your container size, load weight, road condition, and destination market.
| Item | Specification |
| Model | 20ft / 40ft / 45ft Container Chassis Trailer |
| Overall Dimensions | 12,500–13,500 mm (L) × 2,500 mm (W) × 1,550 mm (H) |
| Suitable Containers | 20ft / 40ft / 2×20ft / 45ft (depending on design) |
| Rated Load Capacity | 30–60 Tons (customizable) |
| Tare Weight | 4,800–7,200 kg |
| Main Beam Material | Q345B / T700 High-Tensile Steel, Welded I-Beam |
| Main Beam Height | 450–550 mm |
| Beam Flange Thickness | 14 mm upper / 16 mm lower (Optional: 12–20 mm) |
| Beam Web Thickness | 8–10 mm |
| Chassis Frame Treatment | Shot Blasting + Anti-Rust Epoxy Primer + Polyurethane Paint |
| Twist Locks | 4 / 8 / 12 units, ISO Standard, Manual or Automatic Type |
| Axle Brand | BPW / FUWA / L1 / Custom |
| Axle Quantity | 2 Axles / 3 Axles / 4 Axles |
| Axle Capacity | 13–16 Tons per axle |
| Suspension Type | Mechanical Leaf Springs / Air Suspension / Bogie Suspension |
| Leaf Spring Specification | 90 × 13 mm × 10 pcs per axle (Mechanical type) |
| Brake System | WABCO ABS + Dual-line Pneumatic Brake |
| Brake Drum Size | 420 × 180 mm |
| Kingpin | 2.0 inch / 3.5 inch, Bolted or Welded |
| Landing Gear | JOST 28T / FUWA 28T / Heavy-Duty Local Brand |
| Tires | 12R22.5 / 11R22.5 / 315/80R22.5 (Brand Optional) |
| Rims | 22.5 × 9.0, Steel or Aluminum Alloy |
| Electrical System | 24V, LED Lamps, 7-Core Socket |
| Brake Lines | Steel + Flexible Air Pipes |
| Paint Color | Custom (Black, Blue, Red, Yellow, OEM Available) |
| Container Locks Position | Adjustable for 20ft / 40ft / 2×20ft |
| Gooseneck Type | Flat or Gooseneck (for 40HQ / 45HQ containers) |
| Side Protection | Optional Side Guards & Rear Bumper |
| Spare Tire Carrier | 1 or 2 sets |
| Accessories | Toolbox / Fire Extinguisher Holder / Reflective Tape |
| Optional Add-Ons | Automatic Twist Locks, Air Suspension + Lifting Axle, Heavy-Duty Axles for Mining Roads, Aluminum Toolboxes, Tire Pressure Monitoring System (TPMS), EBS Braking System |
| Factory Waterproofing | Sealed Wiring Harness + Rust-proof Coating |
| Certification | ISO 9001 / CCC / DOT / ADR / CE (optional) |
Applications of Container Chassis Trailer
Container chassis trailers are widely used for port drayage, terminal transfer, warehouse delivery, rail-yard connection, cross-border logistics, and long-distance container transport. A 20ft chassis is more flexible for short routes and narrow yards, while a 40ft or 45ft chassis is more suitable for international logistics routes and high-volume container movement.
Container Chassis Trailer vs Flatbed Trailer
A container chassis trailer is designed mainly for ISO container transport. It uses a skeletal frame and twist locks to secure the container directly. A flatbed trailer has a full open deck and can carry containers, steel, timber, machinery, and other irregular cargo. If your business mainly moves containers between ports, warehouses, and terminals, choose a container chassis. If your cargo changes often, a flatbed trailer may be more flexible.
Different Types of Container Chassis Trailer
The main container chassis trailer types include standard skeletal chassis, container tipper chassis, side loader container chassis, extendable container chassis, gooseneck chassis, and terminal chassis. Each type solves a different problem: standard transport, bulk unloading, independent loading, multi-size flexibility, lower transport height, or high-frequency yard movement.
How to Choose a Container Chassis Trailer
Before buying a container chassis trailer, confirm your container size, loaded weight, road condition, axle load law, tractor compatibility, port equipment, and destination country. For heavy containers or rough roads, prioritize frame strength, axle capacity, suspension durability, braking performance, and twist lock quality over the lowest initial price.
How Much Does a Container Chassis Trailer Cost?
The price of a container chassis trailer depends on size, axle quantity, steel grade, suspension type, brake system, tire brand, twist lock configuration, surface treatment, and customization requirements. A cheaper chassis may reduce upfront cost, but if the frame is weak or the suspension is not suitable for the road, later maintenance and downtime can become more expensive.
Get Exact Container Chassis Price
For an accurate quotation, please provide your container size, load capacity, destination country, axle requirement, suspension preference, and working route. Boca Auto can recommend a suitable container chassis configuration for your port, terminal, warehouse, or cross-border logistics project.
