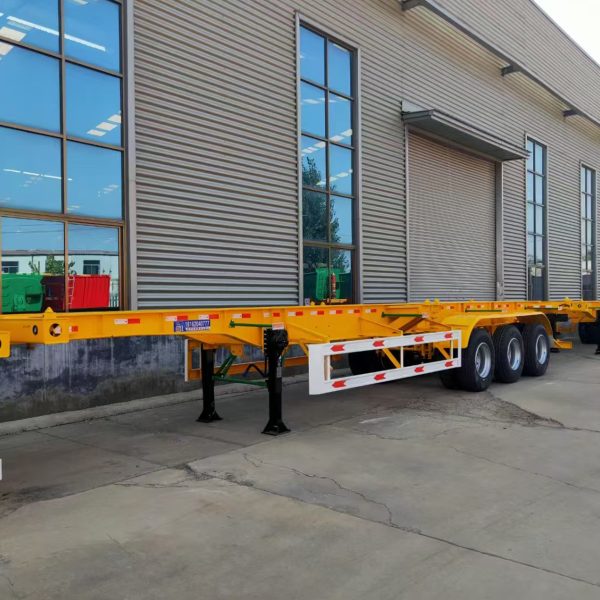

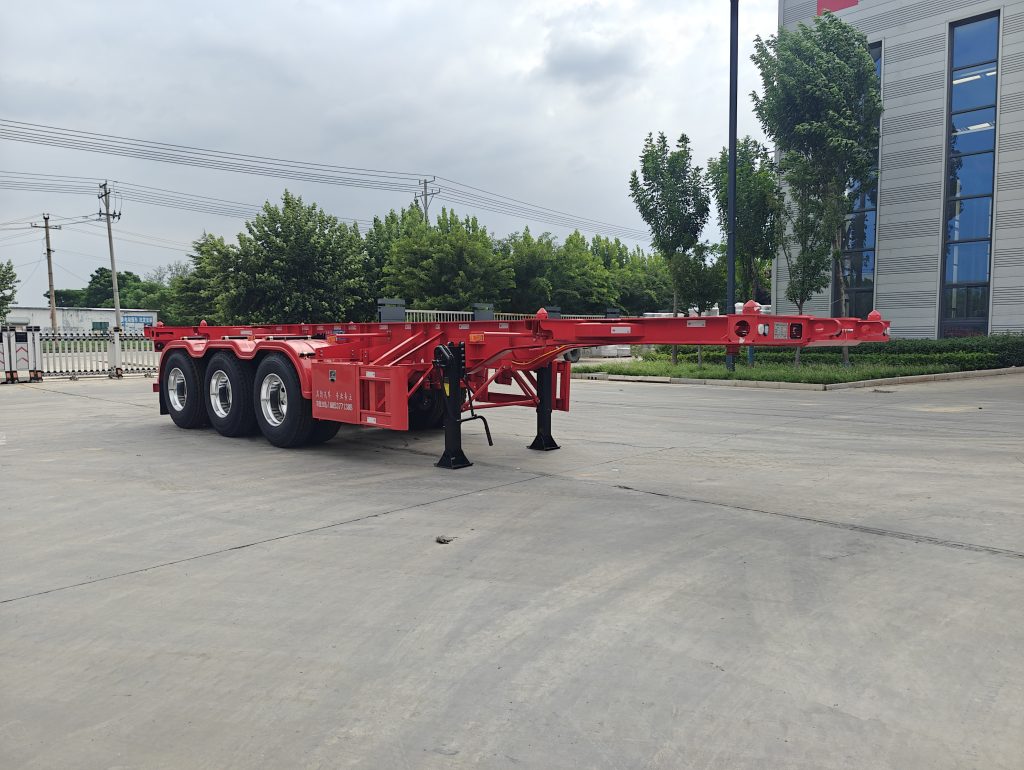

3 axle container chassis trailer
$7,500.00
- Type: 3 axle container chassis
- Price Range: $8,000-12,000
- Delivery Period: 7-15 days
- Loading capacity: 30-60 ton
- Warranty: 5 Years
- Super rigidity:High strength Bao-steel material.
- Application: 20ft 40ft container,ISO Tank
Introduction
The 3 axle container chassis trailer is the most widely used transportation tool in global container logistics. Depending on the configuration, these chassis trailers can carry 20 foot, 40 foot, and sometimes even 45 foot containers, featuring excellent stability, high cargo capacity, and compatibility with transportation standards.
This article comprehensively introduces three types of container chassis trailers, including their specifications, applications, advantages, structural features, optional configurations, and why global operators choose such trailers for container transportation in ports and inland areas.
Key Features of a 3 axle container chassis for sale
A three axis container chassis trailer is specially designed for efficient and safe transportation of international standard containers. Its sturdy structure, stable axle system and durable suspension device make it highly suitable for port logistics, long-distance transportation and heavy container transportation.
| Feature | Description | Main Advantage |
|---|---|---|
| High-Strength Steel Frame | Manufactured using Q345 or T700 high-tensile steel with robotic welding technology | Provides superior durability and load-bearing capacity |
| Anti-Corrosion Surface Treatment | Sandblasting and anti-rust coating applied to the chassis | Improves corrosion resistance and extends service life |
| Heavy-Duty Three-Axle System | Reinforced 3 axle configuration for stable container transport | Enhances load distribution and driving stability |
| ISO Standard Twist Locks | Secure locking system for 20ft and 40ft containers | Ensures safe container fixation during transport |
| Durable Suspension Options | Mechanical or air suspension available | Adapts to different road conditions and cargo requirements |
| High-Quality Tire Configuration | Multiple tire size options available | Improves fuel efficiency and transport reliability |
Tri axle container chassisfor sale Specifications
The following is a typical technical specification overview:
| Item | Specification |
| Trailer Type | 3 Axle Container Chassis |
| Length | 12,500–13,500 mm |
| Width | 2,500 mm |
| Height | 1,550 mm |
| Axles | 3 / 13–16 Ton |
| Suspension | Mechanical or air suspension |
| Tires | 12R22.5 / 315/80R22.5 |
| Kingpin | 50# / 90# |
| Twist Locks | 4 or 8 optional |
| Braking System | ABS/EBS |
| Loading Capacity | 40–60 Tons |
Advantages of Three Axle 40ft container chassis
1.The feature of being applicable to various container types
They can transport containers of different sizes.20ft,40ft, or 45ft.
2.Reducing maintenance costs
Its simple structural design and sturdy steel frame ensure a long service life and very low maintenance requirements.
3.Excellent stability
With a design of three evenly spaced axles, it can effectively distribute weight, thereby reducing the wear of tires and suspension components.
4.High transportation efficiency
Application scope: Port, inland container storage yards, warehouses, industrial freight areas
5.Customizable design
The manufacturer can customize: frame length, lock layout, axle type and brand, tires and wheels, anti-lock braking system (ABS) or electronic braking distribution system (EBS)
Why Choose Our ThreeAxle container chassis?
Our tri axis container chassis trailers specifically design for reliable container transportation, heavy-duty operations, and long-term durability. With advanced manufacturing techniques and flexible customization options, we provide efficient transportation solutions for the global logistics market.
| Manufacturing Advantage | Description | Customer Benefit |
|---|---|---|
| High-Strength Steel Structure | Built using premium Q345 or T700 steel | Provides superior durability and load capacity |
| CNC Plasma Cutting Technology | Precision cutting for chassis components | Ensures accurate assembly and structural consistency |
| Robotic Welding Process | Automated high-quality welding technology | Improves welding strength and production reliability |
| Advanced Anti-Corrosion Coating | Sandblasting and rust-resistant paint treatment | Extends service life in harsh operating environments |
| Durable Twist Lock System | Heavy-duty ISO-standard container locking devices | Enhances container safety during transportation |
| Flexible Axle & Suspension Options | Mechanical or air suspension configurations available | Adapts to different road conditions and transport requirements |
| Customized Design Solutions | Tailored configurations for regional regulations and cargo needs | Improves operational efficiency and compliance |
| Global Shipping & After-Sales Support | Export experience with logistics and spare parts assistance | Simplifies international purchasing and long-term operation |
We commit to providing durable, safe, and efficient container transport solutions for customers worldwide.
FAQ -3 axle container chassis for sale
What is the 3 axle container chassis trailer price?
The price depends on configuration, suspension type, axle brand, and customization.
What containers can a 3 axle container chassis carry?
This trailer can carry 20ft and 40ft ISO containers. Dual‑twist lock setups for combined configurations are available upon request.
Can the heavy duty container chassis trailer for 20ft and 40ft be customized for rough road conditions?
Yes. We offer reinforced frames, heavy‑duty suspension, and other options suited to rough roads in markets such as Africa and South America.
What is the delivery time for export orders?
Production usually takes 25–35 working days, and shipping time varies by destination port and method.
