Bitumen tanker semi trailer

Introduction to bitumen tanker semi trailer

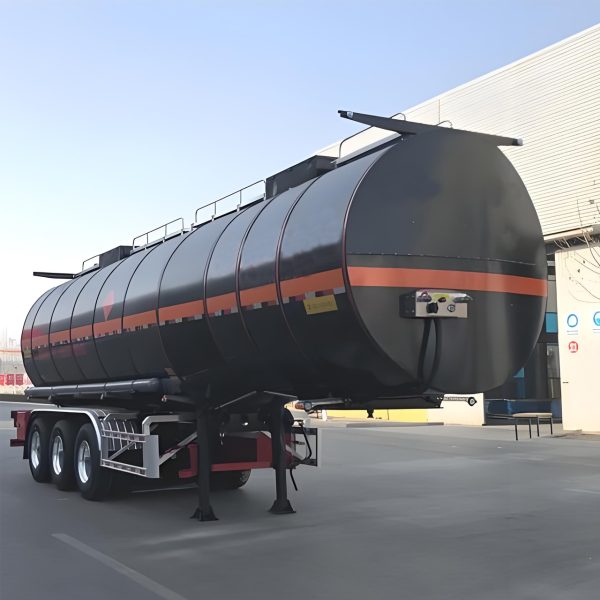

3 axle 45000L Bitumen tanker semi trailer are specialized transport equipment used to transport hot asphalt, bitumen, and other high-viscosity petroleum-based materials, which are crucial in road construction and pavement maintenance. Because this material is temperature-sensitive, the semi-trailer must be kept under stable heating and insulation to ensure the asphalt remains liquid and is safe and easy to unload.

With the rapid development of global infrastructure, the demand for high-quality bitumen tanker semi trailer for sale has increased significantly. These asphalt tank semi trailer feature excellent thermal efficiency, superior structural strength, and well-designed safety systems, making them indispensable for highway contractors, asphalt supply companies, and construction fleets.

Key Features of bitumen semi tanker trailer

1.High-Strength Tank Structure Design

The tank is constructed from Q345 carbon steel, stainless steel, or boiler-grade materials, which offer excellent heat resistance and corrosion resistance. Automated welding technology ensures seamless joints and long-term structural integrity.

2.Thick, Multi-Layer Insulation

Because the temperature of asphalt must be maintained between 140°C and 200°C, the storage tank is wrapped with multiple layers of insulation:

Rock wool (high-temperature resistant)

Aluminosilicate insulation

Composite protective shell

This design minimizes heat loss and reduces fuel consumption required for heating.

3.High-Efficiency Heating System

A key component of the bitumen tanker semi trailer is the heating system, which typically includes:

Imported diesel burners

Hot oil circulation system

Optional electric heating unit

These systems provide continuous and consistent temperature control throughout the tank.

4.High-Pressure Asphalt Delivery System

This pumping and discharge system is designed for high-viscosity liquid materials. It includes:

High-temperature resistant asphalt pump

Adjustable flow control

Leak-proof valve

Insulated discharge piping

This ensures efficient unloading even in cold climates.

5.Safety Systems for High-Temperature Transportation

Asphalt transportation requires more comprehensive safety measures, including:

Anti-lock braking systems or electronic braking systems

Safety relief valves

Double-sealed inspection wells

Fireproof and heat-insulating materials

Anti-slip roof walkways

These devices protect the safety of trailers and operators during loading, transportation, and unloading.

Asphalt tank semi trailer technical Specifications

Category	Specification
Tank Capacity	30,000–55,000 L
Tank Material	Q345 steel / Stainless steel
Insulation Material	80–100 mm rock wool & aluminum silicate
Heating System	Diesel burner / Thermal oil / Electric
Axles	2–3 axles
Suspension	Mechanical or air suspension
Bitumen Pump	High-temperature asphalt pump
Manholes	2–3
Braking System	ABS / EBS optional
Tire Size	12R22.5 or 385/65R22.5

Benefits of Using bitumen tanker semi trailer

1.Excellent Insulation

This insulation design allows asphalt to remain within its optimal emission temperature range for extended periods.

2.Faster Loading and Unloading

High-temperature pumps and large access ports facilitate easier filling, circulation, and unloading operations.

3.Increased Transportation Efficiency

Stable temperature retention prevents delays and eliminates the need for reheating.

4.Reduced Operating Costs

Energy-efficient burners and hot oil systems minimize fuel consumption.

5.Durable and Long-Lasting

The tank, chassis, and support components reinforce to ensure long-term use in harsh environments.

6.Customizable Options

Customers can choose:Tank Capacity,Material Type,Pump System,Heating Method,Tire and Axle Brand,Suspension Type

This thermal oil heating bitumen trailer ensures compliance with local road regulations and operational requirements.

7.Application Industries

Bitumen transport trailer are suitable for a variety of road construction and industrial operations, including:

Highway and highway pavement paving

Asphalt delivery companies

Municipal road construction

Asphalt transportation from factory to site

Airport construction

Large infrastructure projects

The versatility of this hot bitumen semi trailer makes it ideal for fleets operating in Africa, Southeast Asia, the Middle East, Central Asia, and South America.

Why Bitumen Tankers Need Heating Systems

Bitumen becomes solid at normal temperature, so a heating system is required.

Key components:

Burner heating system

Heat transfer oil pipes

Thermal insulation layer

Temperature control system

Operating temperature can reach up to 200°C+

Bitumen Tanker vs Fuel Tanker

Feature	Bitumen Tanker	Fuel Tanker
Material	Asphalt / Bitumen	Diesel / Petrol
Heating System	Required	Not required
Insulation	Thick insulation	Minimal
Temperature	High (heated)	Normal

How to Choose the Right Bitumen Tanker

Consider:

Required temperature control

Transport distance

Capacity requirements

Heating system type

Proper configuration ensures stable asphalt delivery

FAQ

What is a bitumen tanker trailer used for?

It is used to transport hot asphalt and bitumen materials.

Why does it need heating?

Bitumen solidifies at low temperature and must be kept hot.

What is the capacity?

Common models range from 30,000L to 60,000L.
