Sidewall Semi Trailer:Design, Function,and Applications

Overview

Sidewall semi trailer have gained popularity in the modern transportation sector due to their unique design and functions, which ensure the safety, efficiency and flexibility of cargo transportation.

This article explores the design, functions and applications of side wall semi trailer, with a particular emphasis on the role they play in enhancing logistics efficiency.

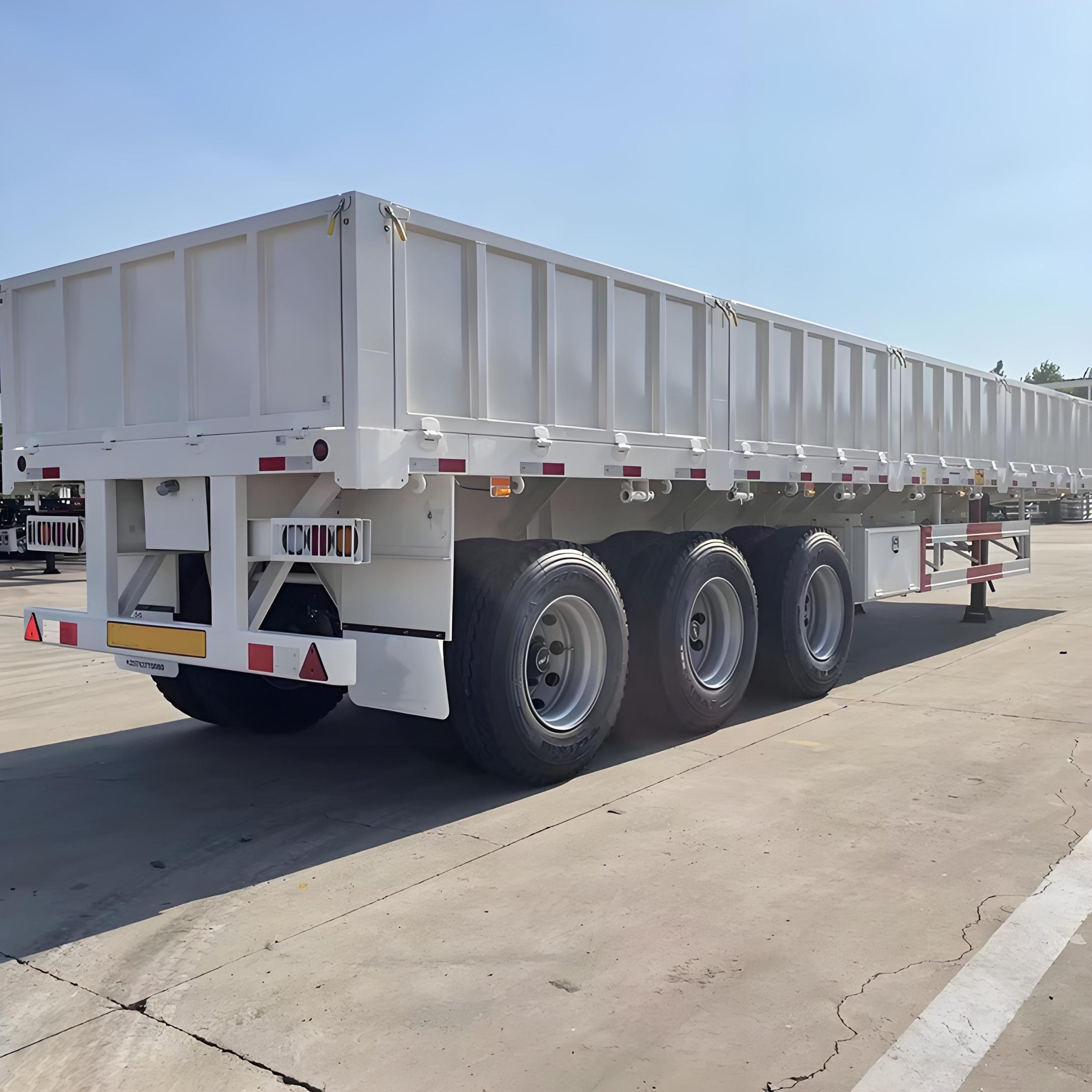

What is a sidewall semi trailer?

The main feature of sidewall semi trailer is the presence of sturdy or reinforced side panels, which typically extend from the bottom of the vehicle to the top. Unlike flatbed semi trailers, sidewall semi-trailer offer better protection for the cargo and facilitate loading and unloading operations. They widely use for transporting goods that require protection from rain, theft, or damage, such as packaging materials, machinery, and perishable products.

The main components of a side wall semi trailer include:

Chassis: The main supporting frame of the trailer, typically made of high-strength steel or aluminum.

Sidewalls: Robust panels used to protect cargo and ensure structural integrity.

Axles and Wheels: Typically equipped with 2 axle,3 axle or 4 axles depending on load capacity.

Landing Gear: Telescopic outriggers that stabilize the trailer when disengaged.

Tractor Pin: Fifth wheel coupling for secure connection to the tractor body.

Features of sidewall semi trailer

Drop side semi trailer design with cargo safety, durability, and operational efficiency in mind. Key design elements include:

Design Feature	Description	Benefit
Solid Sidewalls	Steel or aluminum panels from floor to roof	Protects cargo from weather, theft, and damage
Adjustable Roof	Fixed or removable roof	Facilitates loading of oversized items
Reinforced Floor	Heavy-duty steel or composite material	Supports heavy and uneven loads
Multiple Axle Options	two,three or four axles	Enhances load distribution and stability
Suspension System	Air suspension or leaf spring	Reduces vibrations and protects cargo
Side Access Doors	Optional doors on side panels	Allows easy loading/unloading of small or palletized goods

These design features make sidewall semi trailers suitable for a variety of cargo types and transport environments.

Functions of Side Wall Semi-Trailer

Sidewall semi trailer design to support modern transport operations with a range of functions:

1. Strengthen cargo protection

The sturdy side wall can protect the goods from adverse weather conditions, roadblocks, and theft.

2. Efficient loading and unloading

Sidewall semi trailer equip with side opening doors or detachable panels, making loading and unloading more convenient.

3. Structural support

The reinforced side wall and floor structure enhance structural stability and improve the safety of load-bearing.

4. Multi-modal compatibility

Sidewall semi trailer can also use for container cargo transportation or multimodal transport vehicles.

Why Choosing the Right Sidewall Semi Trailer Matters?

A properly selected trailer offers several advantages:

Higher transportation efficiency

Lower maintenance costs

Longer service life

Better cargo protection

Higher resale value

Improved road safety

Choosing the wrong trailer may lead to excessive maintenance, reduced payload, premature structural damage, and higher operating expenses.

How to choose the side wall semi trailer?

Determine Your Cargo Type

The first consideration is the type of cargo you plan to transport.

Cargo Type	Recommended Trailer
Steel coils	Reinforced sidewall trailer
Cement bags	Standard sidewall trailer
Agricultural products	High-sidewall trailer
Building materials	Heavy-duty sidewall trailer
Pallet cargo	Dropside trailer
Machinery	Sidewall trailer with reinforced floor

Selecting a trailer designed for your cargo improves loading efficiency and safety.

Choose the Right Payload Capacity

Payload capacity is one of the most important purchasing factors.

Typical options include:

Payload	Application
30 Tons	Light cargo
40 Tons	General freight
50 Tons	Construction materials
60 Tons	Heavy industrial cargo
80 Tons	Mining and oversized loads

Always choose a trailer with sufficient load capacity while complying with local regulations.

Select the Appropriate Axle Configuration

Axle configuration directly affects payload, stability, and maintenance costs.

Axles	Advantages
2 Axles	Lightweight and economical
3 Axles	Most popular for international transport
4 Axles	Higher payload capacity
Multi-Axle	Heavy-duty transportation

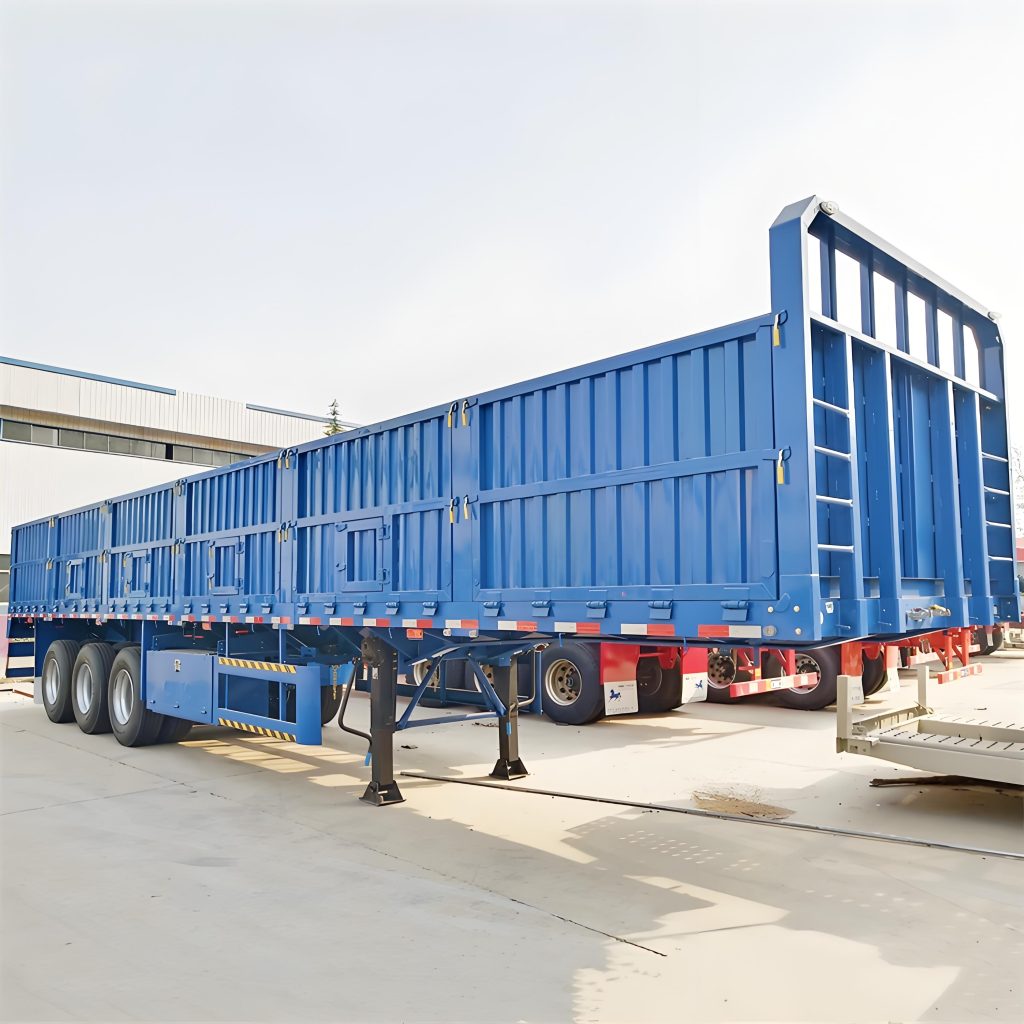

For most international logistics companies, the 3 axle sidewall semi trailer provides the best balance between cost and performance.

Evaluate the Sidewall Structure

The sidewalls should be both strong and easy to operate.

Key features include:

Foldable side panels

Removable sidewalls

Reinforced hinges

Heavy-duty locking mechanisms

Corrosion-resistant coating

Recommended sidewall heights:

Height	Application
600 mm	General cargo
800 mm	Mixed freight
1000 mm	Agricultural products
1200 mm	Bulk cargo

Select the Right Suspension

Suspension affects ride comfort, cargo protection, and maintenance.

Lower purchase cost

Easy maintenance

Ideal for rough roads

Better ride quality

Reduced cargo vibration

Improved tire life

Suitable for highways

Verify the Braking System

An efficient braking system improves safety and reduces stopping distance.

Recommended features:

WABCO air brake system

ABS (Anti-lock Braking System)

EBS (Electronic Braking System, optional)

Automatic slack adjusters

These systems enhance braking stability and comply with international transport standards.

Sidewall Semi-Trailer Specifications

Typical sidewall semi trailer specifications are as follows:

Specification	Typical Range	Notes
Length	12–16 meters (40–53 ft)	Standard trailer length for highways
Width	2.4–2.6 meters (8–8.5 ft)	Complies with road regulations
Height	3–4 meters (10–13 ft)	Depending on roof design
Load Capacity	20,30,50 tons	Varies based on axles and material
Axle Configuration	2, 3, 4 axles	Ensures stability and weight distribution
Material	High-strength steel or aluminum	Balances durability and weight
Floor Type	Reinforced steel or composite	Supports heavy cargo
Suspension	Air or leaf spring	Protects cargo and improves ride comfort

These parameters can be customized according to specific logistics requirements or the type of goods.

Applications in Modern Transport

Side wall semi trailers are highly versatile and use in multiple industries:

Industry	Typical Cargo	Benefit
Manufacturing	Machinery, equipment	Safe transport of heavy goods
Retail & E-commerce	Packaged goods, pallets	Efficient loading/unloading and protection
Food & Beverage	Non-perishable items	Maintains cargo integrity and prevents damage
Industrial & Construction	Building materials, steel products	Supports heavy loads and ensures safety

The adaptability of sidewall semi-trailers makes them a valuable asset for logistics providers looking to improve fleet efficiency and ensure cargo safety.

Conclusion

Dropside semi trailer can protect the goods, enhance operational efficiency, and have wide applicability. Their sturdy side walls, flexible design, and good adaptability make them suitable for numerous industries, including manufacturing, retail, construction, and e-commerce, etc.

By using side wall semi trailers, logistics companies can improve transportation efficiency and ensure the safety of goods.

FAQ

1. What is a sidewall semi trailer?

sidewall semi-trailer is a versatile cargo transport trailer equip with removable or fixed side panels.

2. What are the advantages of removable sidewalls?

Removable sidewalls increase flexibility by allowing the trailer to transport oversized cargo, containers, or machinery when necessary.

3. How many axles does a side wall semi trailer usually have?

Sidewall semi trailers commonly feature 2 axle, 3 axle, or 4 axle configurations depending on cargo weight requirements and local transportation regulations.

4. Can sidewall semi trailers be customized?

Yes. Customers can customize:
