Tanker Trailer Buying Guide for Fuel, Oil and Chemical Transport
Learn how to choose a tanker trailer for fuel, oil and chemical transport, including tank material, compartments, valves, unloading systems, safety accessories and export inquiry details.
For fuel, oil, chemicals, water, asphalt and cement transport, the right tank configuration affects safety, unloading speed, maintenance cost and route flexibility. Therefore, a purchase plan should start with the transported medium, then move to tank material, compartments, valves, discharge system, chassis matching and export documents.
A tanker trailer is not selected by volume alone. Instead, the cargo type decides the tank body, sealing method, valve layout, manhole design and safety accessories. For example, diesel distribution needs anti-static protection and emergency shut-off valves, while chemical liquid transport needs material compatibility and stronger corrosion resistance.
Moreover, export projects often involve different road conditions, climate zones and registration rules. As a result, a strong specification file should include cargo name, density, required capacity, compartment quantity, discharge method, axle setup, destination country and any local safety requirement.
Quick Selection Logic Before Configuration
First, confirm the material being transported. Then, match the tank body, internal compartments, valves, discharge system and chassis structure. Finally, check whether the destination market requires special markings, documents, lighting, brake options or hazardous goods references.
- Fuel and oil transport: focus on sealing, anti-static systems, bottom valves and compartment separation.
- Chemical liquid transport: focus on stainless steel, corrosion resistance, compatible gaskets and safety valves.
- Asphalt transport: focus on insulation, heating system and high-temperature discharge.
- Cement transport: focus on dry bulk tank structure, pneumatic unloading and air compressor matching.
What Is a Tank Semi Trailer?
A tank semi trailer is a sealed transport unit mounted on a semi-trailer chassis. It carries liquid cargo, heated petroleum materials, industrial water, edible liquid, chemical fluid or dry powder. Therefore, its structure is more specialized than an open-deck trailer.
For comparison, a flatbed semi trailer carries containers, steel, pipes and machinery. However, liquid or powder cargo needs a closed tank, internal baffles, pressure control, discharge pipelines and reliable sealing. Consequently, tank transport requires more technical confirmation before production.
Liquid cargo
Fuel, diesel, gasoline, oil, water and liquid chemicals need stable sealing, baffles, valves and controlled discharge.
Heated cargo
Asphalt and bitumen need heat retention, insulation, heating coils and a discharge system for viscous material.
Dry bulk cargo
Cement and powder cargo require sealed tank structure, air compressor support and pneumatic unloading pipelines.
View Fuel Tanker Semi Trailer
Choose by Transported Medium First
First, the transported medium decides almost every major configuration. A fuel tank, a chemical tank, an asphalt tank and a cement bulk tank may share a similar trailer outline. However, the working design is completely different.
In addition, cargo density affects payload and legal road weight. A high-density liquid may reach the allowed weight before the tank reaches full volume. Therefore, capacity selection should combine liters, density, axle load and route limits.
For a direct comparison of common petroleum tank types, read our fuel tanker trailer vs oil tanker trailer guide.
Application-based configuration points
- Fuel: diesel, gasoline, petrol and kerosene usually need multi-compartment design, bottom valves, emergency shut-off valves, vapor-related protection and anti-static grounding.
- Oil: lubricating oil, industrial oil and edible oil may need cleaner internal surfaces, wider pipelines, easier drainage or pump-assisted discharge.
- Chemical liquid: acids, alkalis, solvents and additives need material compatibility, corrosion-resistant fittings, suitable seals and safer valve selection.
- Water: potable water, industrial water and construction water require different internal surface treatment, cleaning access and outlet fittings.
- Asphalt: hot bitumen requires insulation, heating support, temperature monitoring and high-temperature pump matching.
- Cement: dry bulk cement requires pneumatic discharge, sealed hatch covers, air compressor support and powder fluidization structure.
Tank Material: Carbon Steel, Stainless Steel or Aluminum
Next, tank material should follow cargo behavior. Carbon steel, stainless steel and aluminum alloy each serve different transport needs. Therefore, material selection should not follow price or appearance alone.
Moreover, valves, pipes, gaskets and manhole seals should match the tank body. If the fittings do not match the cargo, corrosion, leakage or contamination may appear during service. Consequently, the complete tank system should be reviewed as one package.
| Material | Suitable transport | Selection logic |
|---|---|---|
| Carbon steel | Diesel, water, some non-corrosive oil and general industrial liquid. | Strong structure and practical cost. However, coating and anti-rust treatment remain important. |
| Stainless steel | Chemical liquid, edible liquid and corrosion-sensitive cargo. | Better corrosion resistance and cleaner internal surface. Still, grade selection must match the chemical. |
| Aluminum alloy | Fuel distribution and selected non-corrosive liquids. | Lower tare weight supports payload efficiency. However, cargo compatibility remains the first check. |

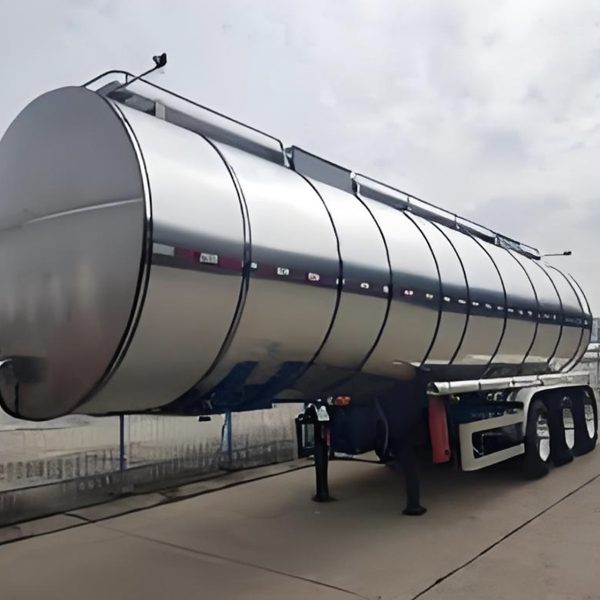

View Chemical Tank Semi Trailer
Key Specifications to Compare
After material selection, the specification sheet should cover tank capacity, compartments, manholes, valves, discharge method, suspension, axles, tires and brake system. In other words, the tank body is only one part of the transport unit.
Also, the same capacity may perform differently when baffles, center of gravity, axle load and suspension structure change. Therefore, specification comparison should focus on real operating conditions, not only on a simple product name.
Tank capacity
Match usable volume with cargo density, legal road weight and delivery frequency.
Compartments
Choose single compartment for one cargo, or multi-compartment design for separated fuel products.
Manholes
Check sealing, gasket quality, pressure relief, inspection access and anti-slip walkway.
Discharge valves
Confirm gravity discharge, pump discharge, bottom valve, side outlet or pneumatic discharge.
Single Compartment or Multi-Compartment?
A single-compartment tank suits one product, one route and simple unloading. For example, water, one industrial oil, or one fixed chemical product can often use a simpler layout. As a result, cleaning and maintenance become easier.
However, a multi-compartment tank supports separated products in one trip. Diesel, gasoline and kerosene can move in different chambers when route planning requires it. Nevertheless, each compartment needs its own manhole, bottom valve, discharge outlet, sealing parts and product identification.
For chemical liquid, compartment planning requires more caution. Different chemicals may react with each other or need different seals. Therefore, chemical compatibility and cleaning requirements should be confirmed before mixed-cargo operation is considered.
View Aluminum Tanker Trailer
Discharge System and Loading Site Matching
Furthermore, unloading conditions can change the whole tank design. Some sites support gravity discharge. Others need pump-assisted discharge, bottom loading, special hose connections or a fixed unloading arm.
For fuel and water, gravity discharge or pump transfer may be enough. For thicker oil, larger pipelines or stronger pumps may be required. Meanwhile, asphalt needs high-temperature pump support and insulated discharge lines to maintain flow.
Consequently, the technical file should state loading method, unloading height, site pump availability, hose diameter, valve position and expected unloading speed. This prevents a common problem: the tank volume is correct, but the unloading system does not match the site.
Unloading method checklist
- Gravity discharge for simple liquid routes and compatible site height.
- Pump-assisted discharge for thicker liquids or faster transfer.
- Bottom discharge valves for fuel routes that need safer and cleaner operation.
- Pneumatic discharge for cement and dry powder transport.
- High-temperature pump and insulated pipelines for asphalt and bitumen.
View Asphalt Tanker Trailer
Safety Accessories and Export Compliance
Safety configuration should match cargo risk and destination rules. Fuel transport often needs anti-static grounding, emergency shut-off valves, pressure relief valves, fire extinguisher boxes and anti-slip walkways. In addition, reflective markings and lighting should match local road use.
For chemical liquid, sealing and corrosion resistance matter as much as structural strength. Gaskets, valves and pipelines should match the cargo. Meanwhile, documentation should clearly state material, compartment layout, tank capacity and major safety parts.
For international dangerous goods transport references, the United Nations Economic Commission for Europe provides information on the ADR framework for dangerous goods by road. However, local registration and operating rules should still be checked in the destination market before final configuration.
Export preparation may include technical drawings, packing information, certificate of origin, inspection photos, bill of lading details and specification sheets. Also, some markets may require specific nameplates, brake options, side protection or hazardous cargo markings.
Boca Vehicle Configuration Support
Boca Vehicle supports tank semi trailer configuration for fuel, oil, chemical liquid, asphalt, water and cement transport. The discussion can cover tank material, usable volume, compartment quantity, manhole layout, discharge valve, suspension, axle quantity, tire choice and export documentation.
Moreover, photo and video confirmation can support production review before shipment. Tank appearance, valve position, welding details, manhole access and nameplate information can be checked more clearly before delivery.
For route planning that requires a full transport set, tractor matching can also be reviewed. Fifth wheel height, kingpin size, air connector, electrical connector and pulling capacity should match the tank unit. Therefore, trailer selection and tractor compatibility should be considered together.
Information Needed for a Faster Quotation
A clearer inquiry file leads to a more accurate configuration. In particular, cargo type and destination country should be confirmed early because they affect material choice, safety accessories and export documents.
- Cargo name, density, temperature, viscosity and corrosion behavior.
- Required loading capacity, usable tank volume and compartment quantity.
- Preferred tank material, such as carbon steel, stainless steel or aluminum alloy.
- Loading method, unloading method, pump requirement and hose connection.
- Axle quantity, suspension preference, road condition and destination country.
- Any local requirement for lighting, brake system, side protection or hazardous cargo markings.
Further Reading
For related product selection, these verified BOCA product category pages can support further comparison. They help connect the article with tank transport, cargo transport and tractor matching without using unpublished blog links.
FAQ
What is a tank semi trailer used for?
A tank semi trailer carries liquid, heated material or dry bulk powder in a sealed tank body. Common uses include fuel, oil, chemical liquid, water, asphalt, bitumen and cement transport.
How should tank material be selected?
First, confirm cargo name, density, temperature and corrosion behavior. Then compare carbon steel, stainless steel and aluminum alloy according to compatibility, cleaning needs, tare weight and maintenance conditions.
Is single compartment or multi-compartment design better?
Single compartment design suits one product and simple routes. Multi-compartment design suits separated fuel products or multiple delivery points, but it needs clearer valve, pipe and marking control.
What safety accessories are commonly needed?
Common safety accessories include emergency shut-off valves, pressure relief valves, anti-static grounding, manhole sealing, anti-slip walkways, fire extinguisher boxes, reflective markings and reliable brake components.
What details are needed before quotation?
The quotation file should include cargo type, loading capacity, tank volume, compartment quantity, axle quantity, road condition, unloading method, destination country and any known local compliance requirement.
Summary
In summary, a tanker trailer should match the cargo first, then the route, unloading site and destination market. Fuel, oil, chemical liquid, water, asphalt and cement each require different material logic, compartment planning, valve layout and safety accessories. Therefore, a clear technical file is the safest path to the right configuration.
- First, confirm cargo type, density, loading capacity and required tank volume.
- Second, define material, compartment quantity, discharge system, axle setup and road condition.
- Finally, send the destination country and compliance notes through the official inquiry page.
